33 32 240 Replacing ball joint in left or right swinging arm/wheel carrier

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Deactivate and drain AIR SPRING/SUSPENSION SYSTEM
Release SHOCK ABSORBER on swinging arm.
Release INTEGRAL LINK at swinging arm.
Release ANTI-ROLL BAR LINK at swinging arm.

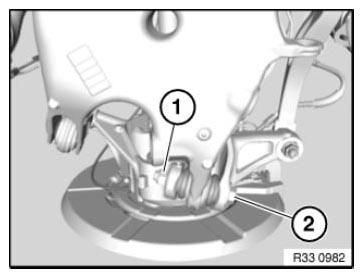

Slacken nut (1).

Remove bolt (2) towards rear.

Tightening torque 33 32 3AZ .

Installation note:

Replace self-locking nut.

Fig 1: Identifying Nut And Bolt

G08484436

Courtesy of BMW OF NORTH AMERICA, INC.

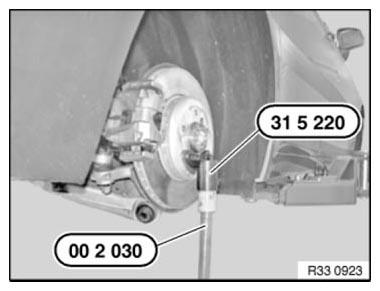

Secure special tool 31 5 220 with wheel studs to drive flange.

Support axle support with special tool 31 5 220 and workshop jack 00 2 030 .

Fig 2: Securing Special Tool 31 5 220 With Wheel Studs To Drive Flange

G06889874

Courtesy of BMW OF NORTH AMERICA, INC.

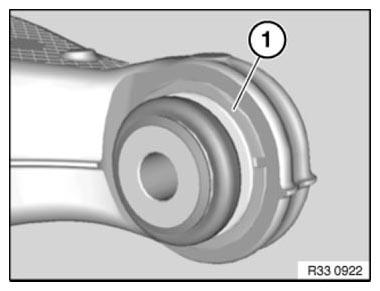

Remove circlip (1).

Installation note:

Replace circlip (1).

Fig 3: Identifying Circlip

G06889875

Courtesy of BMW OF NORTH AMERICA, INC.

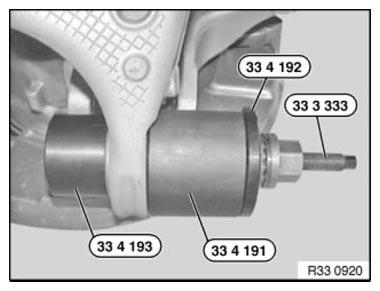

Pull out ball joint with special tools 33 4 193 , 33 4 191 , 33 4 192 and 33 3 333 .

Fig 4: Pulling Out Ball Joint With Special Tools 33 4 193, 33 4 191, 33 4 192 And 33 3 333

G06889876

Courtesy of BMW OF NORTH AMERICA, INC.

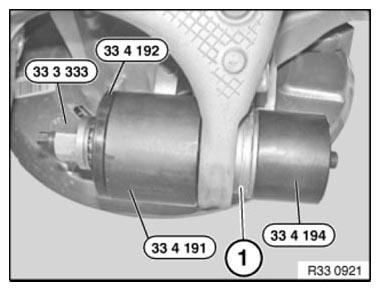

Fit new ball joint (1) with special tools 33 3 333 , 33 4 192 , 33 4 191 and 33 4 194 .

Fig 5: Fitting Ball Joint With Special Tools 33 3 333, 33 4 192

G06889877

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Activate and fill AIR SPRING SYSTEM
Carry out wheel alignment procedure. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
