33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Unscrew nuts (1).

Remove anti-roll bar link (2).

Tightening torque 33 55 2AZ .

Installation note:

Replace self-locking nuts.

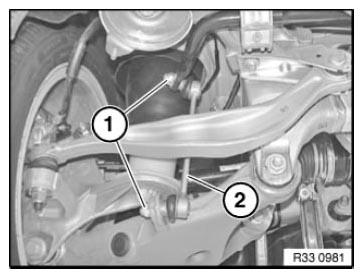

Fig 1: Identifying Anti-Roll Bar Link And Nuts
G08484512Courtesy of BMW OF NORTH AMERICA, INC.
