33 32 131 Removing and installing/replacing a steering stub/wheel carrier

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Deactivate and empty AIR SPRING SYSTEM
Remove REAR WHEEL .

IMPORTANT: Expand anti-twist lock sufficiently to avoid damaging thread when releasing collar nut.

Release collar nut (1), activate parking brake for this purpose.

Installation note:

Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down.

No oil permitted on thread of shaft journal or collar nut.

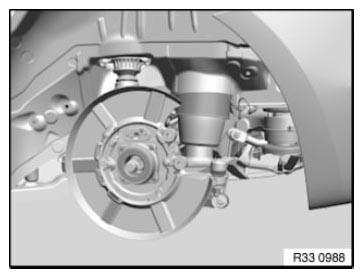

Fig 1: Identifying Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 33 41 1AZ .

Secure collar nut by positive peening on flat areas of output shaft.

Remove parking brake shoe expander (only F07). See EXPANDER or ACTUATOR UNIT (VEHICLES WITH ELECTRO-MECHANICAL PARKING BRAKE) .

Remove parking brake Bowden cable from wheel carrier (only F07).

Remove PULSE SENSOR FROM WHEEL CARRIER .

IMPORTANT:

Check sensor head and line from pulse sensor prior to installation for external damage, replacing if necessary.

IMPORTANT: Secure wheel carrier against falling out.

Remove INTEGRAL LINK from wheel carrier.

Remove TOE ARM FROM WHEEL CARRIER .

Remove UPPER WISHBONE FROM WHEEL CARRIER .

Remove wheel carrier.

Replacement:

Modify wheel bearing

Modify BRAKE ANCHOR PLATE/BRAKE GUARD PLATE

Fig 2: Securing Wheel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Activate and fill AIR SUSPENSION SYSTEM
Adjust PARKING BRAKE (only F07)
Replacement only: Perform chassis/wheel alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
