41 35 081 Removing And Installing Front Side Panel On Left

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Observe 41 00... BODY GAP DIMENSIONS .

IMPORTANT: Do not damage adjoining body components.

Necessary preliminary tasks

Remove SIDE REPEATER
Remove wheel arch covers See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) or 51 71 039 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (REAR SECTION)
Remove TRIM PANEL FOR COVER ON SIDE MEMBER
Partially loosen BUMPER TRIM on the side
Remove SEAL MOUNTING for engine compartment lid

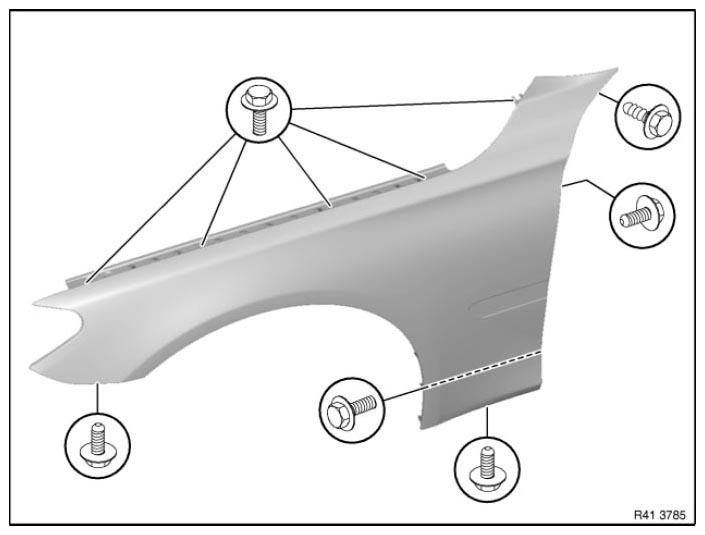

Fig 1: Identifying Trim Panel Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 41 35 1AZ .

Tightening torque 41 35 2AZ .

Replacement

Apply additional sealant to inside of front panel in area (1). Apply to area (1) based on shape of side wall to be replaced.

Material: SEALANT D1 (sourcing reference via BMW Parts Department).

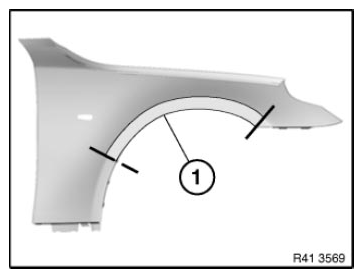

Fig 2: Identifying Front Panel Sealant Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Only vehicles with park assistant

Repair work in area (1) is not permitted.

Replace side wall.

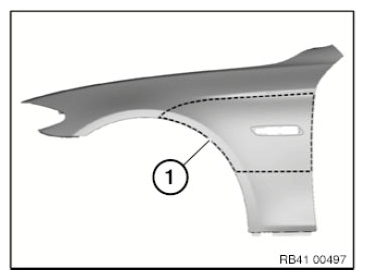

Fig 3: Identifying Non-Repaired Area On Side Wall

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement, only Japan national version, F10/F11:

Replace wheel arch trim (1).

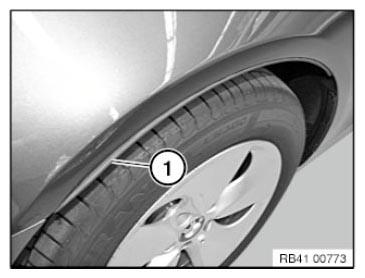

Fig 4: Identifying Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.
