51 76 035 Removing and installing/replacing left or right engine compartment lid seal locator

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 298 505

Necessary preliminary tasks

Remove REAR ENGINE COMPARTMENT LID SEAL .

NOTE: Example graphic on the F01.

Lever out expanding rivets (1) with special tool 2 298 505 .

Remove cover (2).

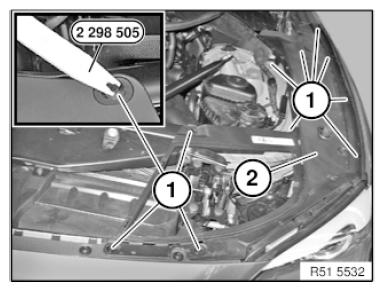

Fig 1: Removing Expanding Rivets Using Special Tool (2 298 505)

Courtesy of BMW OF NORTH AMERICA, INC.
