51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear section)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT WHEEL .

NOTE: For a better view surrounding components have been omitted.

Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Release all screws (3).

Release expanding rivets (2) and (4).

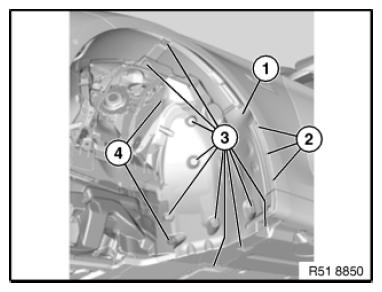

Fig 1: Identifying Wheel Arch, Expanding Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the cover of the wheel arch (1).

Installation note:

Renew expanding rivets (2).

Ensure wheel arch cover (1) is correctly seated.
