51 71 447 Removing and installing or replacing trim panel for cover on left or right side member

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT WHEEL ARCH COVER (REAR SECTION) in working area.
Remove LEFT UNDERBODY PANELLING .
Remove TANK COVER in working area.

NOTE: Graphic is similar.

Open doors.

Release expanding rivet (1).

Unclip trim panel for cover on side member (1) in direction of arrow and remove.

Installation note:

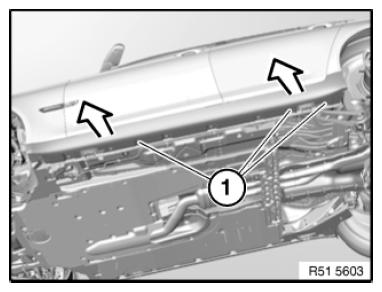

Fig 1: Uncliping Trim Panel For Cover On Side Member

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure cover is correctly seated on side member (1).

Installation note:

Protective film on rear door post for preventing paint abrasion between side frame and trim for cover on side member must not be missing or damaged.

(Sourcing reference BMW Parts Department)

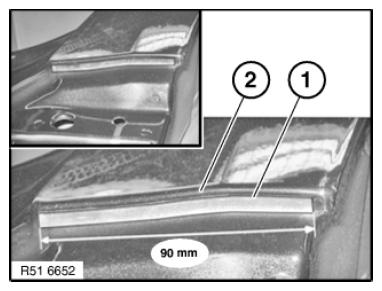

Foil strip is slightly bent in area (1) and must not project over edge (2).

Fig 2: Identifying Foil Strip Bent Area And Edge

Courtesy of BMW OF NORTH AMERICA, INC.
