41 00... Body Gap Dimensions

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

The dimensions specified in this information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

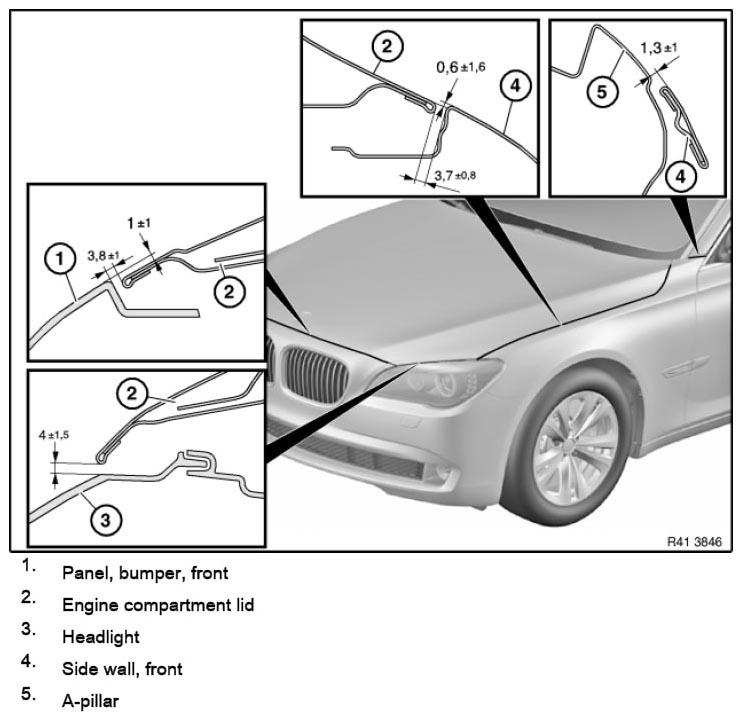

Fig 1: Front Bumper, Hood, Headlamp, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

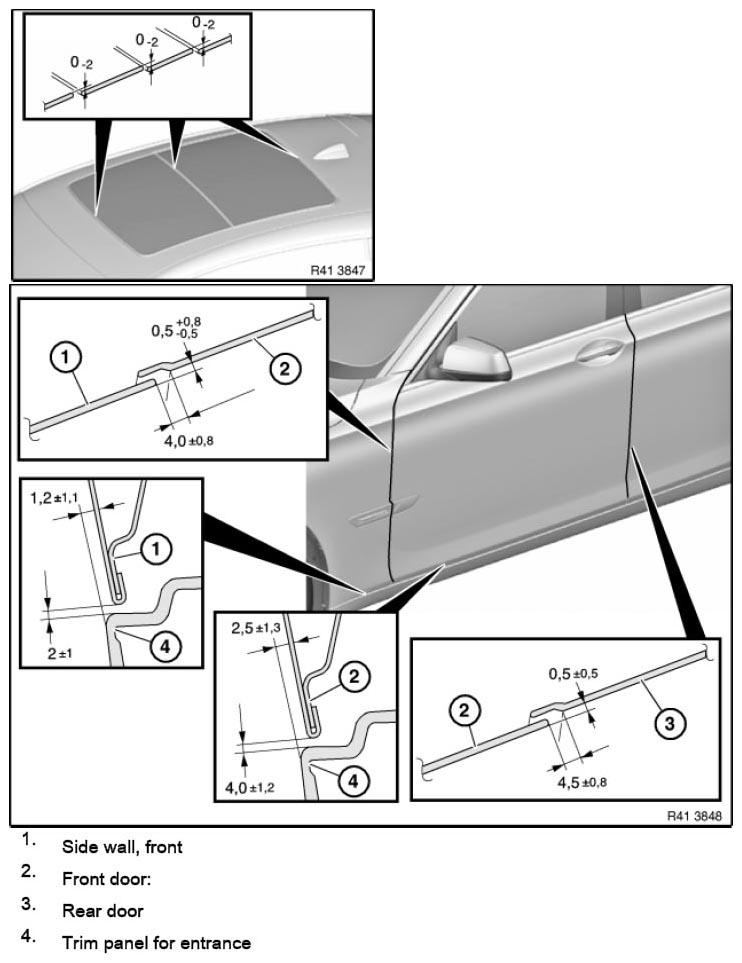

Fig 2: Front Fender, Front Door, Rear Door And Rocker Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

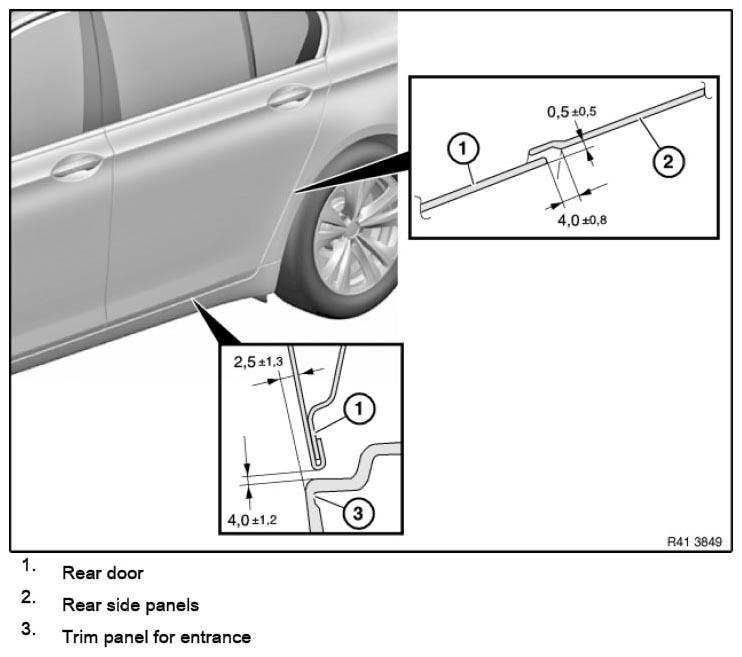

Fig 3: Rear Door, Quarter Panel And Rocker Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

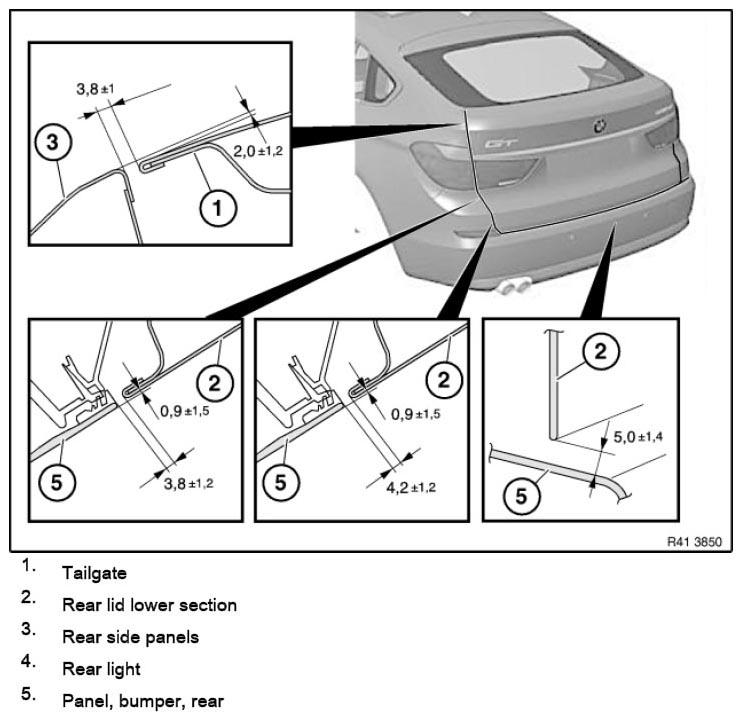

Fig 4: Upper Tailgate, Lower Tailgate, Tail Lamps, Quarter Panel And Rear Bumper Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
