11 21 500 Replacing Crankshaft (N63)

Special Tools Required:

• 00 2 010 .
• 00 9 120 .
• 11 4 350 .
• 11 6 251 .
• 11 6 252 .
• 13 5 020 .

Necessary Preliminary Tasks:

• Remove ENGINE .
• MOUNT  Engine On Assembly Stand.
• Remove Cylinder Heads. See LEFT CYLINDER HEAD  and RIGHT CYLINDER HEAD .
• Remove HUB FOR VIBRATION DAMPER .
• Remove LOWERING TIMING CASE COVER .
• Remove Oil Pan. See LOWER OIL SUMP SECTION  and UPPER OIL SUMP SECTION .
• Remove OIL PUMP .
• Remove PISTONS .
• Remove FLYWHEEL .
• Remove Radial Shaft Seals. See SEALING IN LOWERING TIMING CASE COVER  and SEALING ON TRANSMISSION SIDE .
• Remove TIMING CHAINS .

Installation Note:

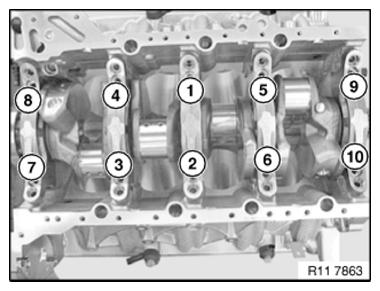

Layout of Main Bearing Caps.

All Numbers Must Be Read From The Cylinder Bank (5 To 8) (See Arrows In Illustration).

Fig 1: Identifying Numerical Layout of Main Bearing Caps for Cylinders 5 Through 8

Courtesy of BMW OF NORTH AMERICA, INC.

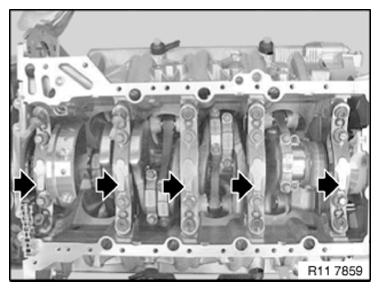

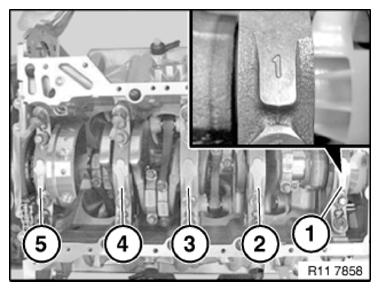

Main Bearing Caps (1 To 5) Opposite The Output End On The Timing Chain Drive.

Fig 2: Identifying Number Markings On Main Bearing Caps 1 Through 5

Courtesy of BMW OF NORTH AMERICA, INC.

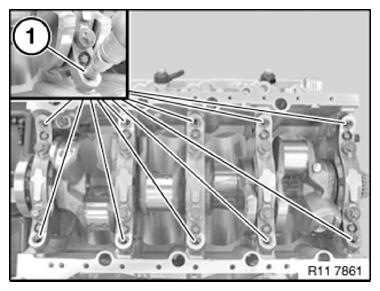

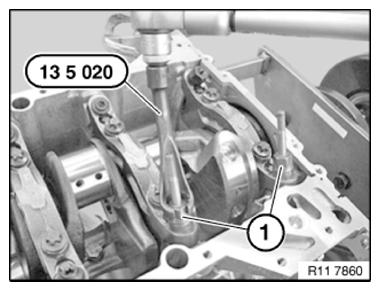

Release Oil Pump Spacer Bolts (1) with Special Tool 13 5 020 .

Fig 3: Releasing Oil Pump Spacer Bolts Using Special Tool 13 5 020

Courtesy of BMW OF NORTH AMERICA, INC.

Release Main Bearing Taper Screw Connection (1).

Release Oil Pump Spacer Pins (2).

Fig 4: Identifying Oil Pump Spacer Pins and Main Bearing Taper Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release All Threaded Support Sleeves (1).

Fig 5: Identifying Support Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

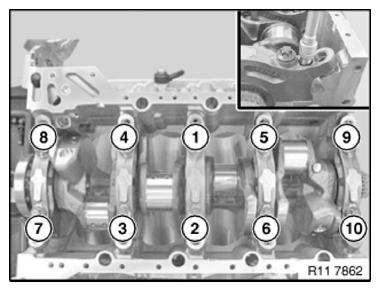

Release Collar Bolts (M8) In Sequence 10 To 1.

Fig 6: Main Bearing Cap Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Release Collar Bolts (M11) In Sequence 10 To 1.

Remove Main Bearing Caps 1 To 5.

Lift Out Crankshaft and Set Down Safely (Secure Against Turning).

Fig 7: Main Bearing Cap Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw for Oil Nozzle (1).

Tightening torque: 11 11 8 AZ .

Fig 8: Identifying Oil Nozzle Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

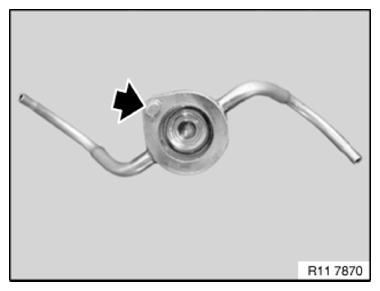

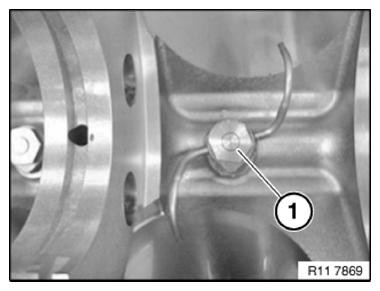

Check Oil Nozzle (1) for Clear Passage with Compressed Air.

Observe Fastening On Oil Nozzle.

Fig 9: Identifying Oil Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

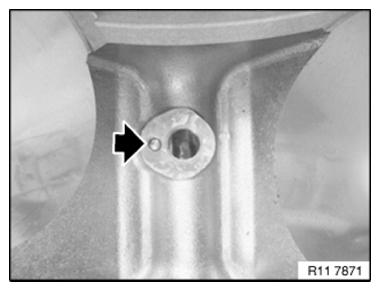

Observe Fastening In Crankcase.

Fig 10: Identifying Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Replace CRANKSHAFT MAIN BEARING SHELLS .

Installation Note:

Observe Arrangement of Main Bearing Caps.

All Numbers Must Be Read From The Cylinder Bank (5 To 8) (See Arrows In Illustration).

Fig 11: Identifying Numerical Layout of Main Bearing Caps for Cylinders 5 Through 8

Courtesy of BMW OF NORTH AMERICA, INC.

Main Bearing Caps (1) Is Opposite The Output End On The Timing Chain Drive.

Turn Back All Threaded Support Sleeves Hand-Tight.

Installation Note:

Coat All Bearing Positions with Engine Oil.

Install Crankshaft.

Fit Bearing Caps (1 To 5).

Fig 12: Identifying Number Markings On Main Bearing Caps 1 Through 5

Courtesy of BMW OF NORTH AMERICA, INC.

Set Down Bearing Caps Positioned From 1 To 5.

Insert All Collar Bolts (M11) Hand-Tight.

Secure Collar Bolts (M11) In Sequence (1 To 10).

Fig 13: Main Bearing Cap Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

for A Better Overview of The Screw Connection Quality, Mark The Head of All Collar Bolts After Joining with A Line (1) Using An Oil-Proof Marker Pen.

Check Angle Tightening.

Fig 14: Placing Mark On Heads of Collar Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

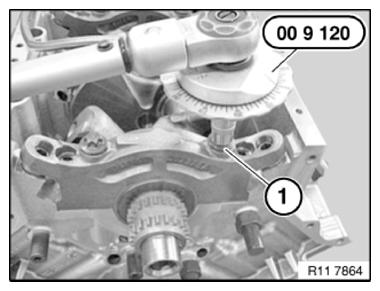

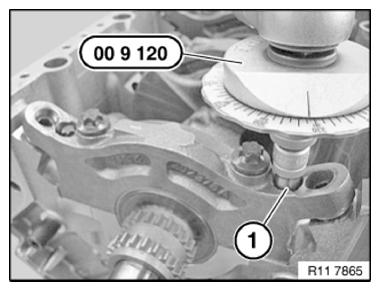

Secure Collar Bolt (1) with Special Tool 00 9 120 .

Tightening torque: 11 11 1AZ .

Fig 15: Tightening Collar Bolts of Main Bearing Caps Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Insert All Collar Bolts (M8) Hand-Tight.

Secure Collar Bolts (M8) In Sequence (1 To 10).

Fig 16: Main Bearing Cap Bolts Tightening/Loosening Sequence (N63O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

for A Better Overview of The Screw Connection Quality, Mark The Head of All Collar Bolts After Joining with A Line (1) Using An Oil-Proof Marker Pen.

Check Angle Tightening.

Fig 17: Placing Mark On Heads of Collar Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure Collar Bolt (1) with Special Tool 00 9 120 .

Fig 18: Securing Collar Bolt Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

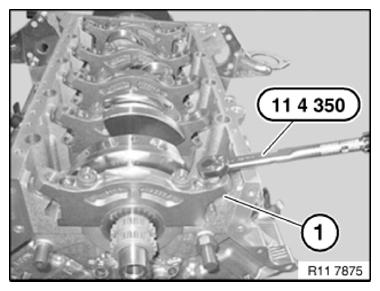

Secure All Threaded Support Sleeves (1) with Special Tool 11 4 350 .

Tightening torque: 11 11 3 AZ .

Fig 19: Securing Threaded Support Sleeves Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

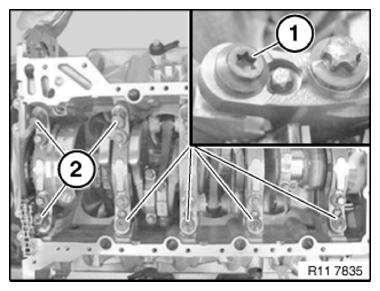

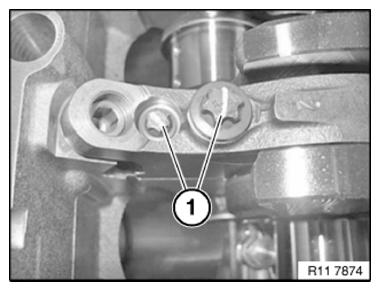

Secure Main Bearing Taper Screw Connection (1).

Tightening torque: 11 11 4 AZ .

Secure Oil Pump Spacer Pins (2).

Tightening torque: 11 11 5 AZ .

Fig 20: Identifying Oil Pump Spacer Pins and Main Bearing Taper Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Check Crankshaft COEFFICIENT OF FRICTION .

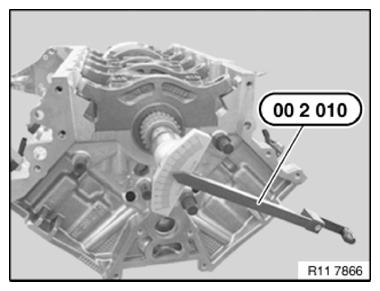

Determine Crankshaft Breakaway Torque  with Special Tool 00 2 010 .

Rotate Crankshaft At Central Bolt Using Special Tool 00 2 010 .

If The Breakaway Torque Is Too High, It Will Be Necessary To Correct The BEARING CLEARANCE .

Fig 21: Determining Crankshaft Breakaway Torque By Turning Crankshaft Central Bolt Using Special Tool 00 2 010

Courtesy of BMW OF NORTH AMERICA, INC.

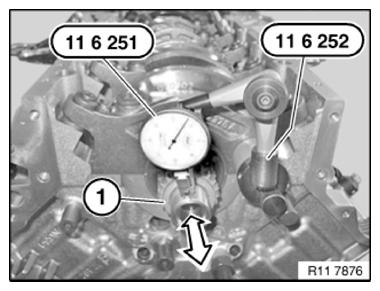

Secure Special Tool 11 6 252 To Crankcase with Magnetic Base.

Slide Crankshaft In Direction of Arrow Forwards As Far As It Will Go.

Set Special Tool 11 6 251 To Zero.

Slide Crankshaft (1) In Direction of Arrow Towards Rear and Determine Value.

Check AXIAL PLAY .

Fig 22: Securing/Positioning Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
