11 23 010 Removing and Installing/Replacing Vibration Damper (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

Necessary Preliminary Tasks:

Remove FAN COWL .
Remove A/C Compressor DRIVE BELT .
Remove Alternator DRIVE BELT .
Remove Belt Pulley for A/C System

Release Screw (1).

Tightening torque 11 28 1AZ .

Remove Belt Tensioner with Idler Pulley (2).

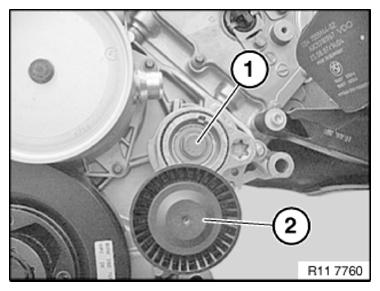

Fig 1: Identifying Belt Tensioner/Idler Pulley and Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Secure Special Tool 11 8 090 with Three Screws (1) To Vibration Damper.

Secure Special Tool 11 8 090 with Belt Tensioner Bolt (2) To Timing Case Cover.

Tightening torque 11 28 1AZ .

NOTE: A 3/4 Inch Tool Is Needed To Release The Central Bolt.

Release Central Bolt On Vibration Damper.

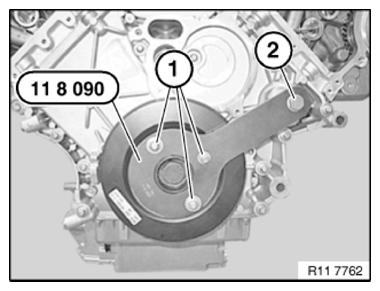

Fig 2: Securing Special Tool 11 8 090 with Belt Tensioner Bolt To Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Secure Central Bolt with Special Tool 00 9 140 or 11 3 460 .

Position Special Tool 11 3 460 On Special Tool 11 8 090 .

Adjust Special Tool 11 9 453 On Special Tool 11 9 454 Using Clamping Screw To 0° On Scale.

Tightening torque 11 23 1AZ .

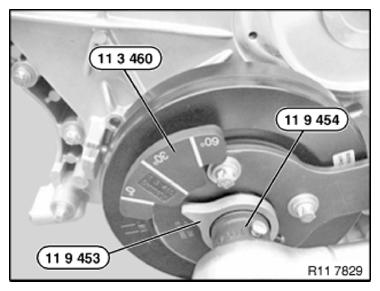

Fig 3: Securing Central Bolt and Positioning/Adjusting Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
