11 13 020 Removing and Installing/Replacing Lower Oil Sump Section (N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove Underbody Protection At FRONT and REAR .
- Release Oil Drain Plug and Drain ENGINE OIL .
- Remove STIFFENING PLATE (All-Wheel Drive Vehicle, F12, F13).

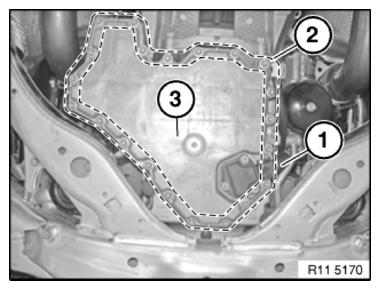

Unlock Plug Connection (1) On Oil Level Sensor and Disconnect.
Release Screws (2) Along Line.
Tightening torque 11 13 3AZ .
Remove Lower Oil Sump Section (3).
Installation Note:
Clean Sealing Surfaces.
Replace Gasket.
Replace Screws.
When Replacing Lower Oil Sump Section:
Convert Oil Level Sensor.
Replace Sealing Ring.
NOTE:
Procedure with All-Wheel Drive.

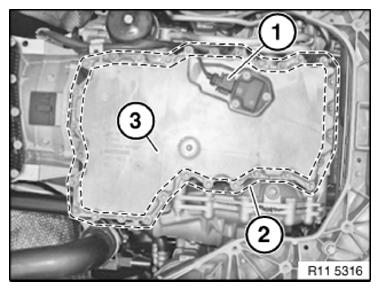

Unlock Plug Connection (1) On Oil Level Sensor and Disconnect.
Release Screws (2) Along Line.
Tightening torque 11 13 3AZ .
Remove Lower Oil Sump Section (3).
Installation Note:
Clean Sealing Surfaces.
Replace Gasket.
Replace Screws.
When Replacing Lower Oil Sump Section:
Convert Oil Level Sensor.
Replace Sealing Ring.
