11 13 010 Removing and Installing/Replacing Upper Oil Sump Section (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 9 240 .

Necessary Preliminary Tasks:

Secure Engine In INSTALLATION POSITION .
Lower Front Axle. See LOWERING/RAISING (UNIVERSAL LIFTER) or LOWERING/RAISING (ALL-WHEEL DRIVE VEHICLE) .
Remove OIL PUMP .
Remove FRONT AXLE DIFFERENTIAL (AWD Only).
Remove Front Output Shaft BEARING SUPPORT (AWD Only).
Unclip Wiring Harness On Oil Sump.

Remove Oil Filter Cover with Oil Filter (1) with Special Tool 11 9 240 .

Tightening torque: 11 42 1AZ .

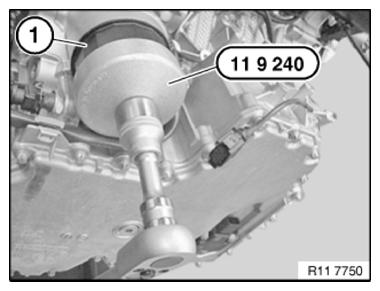

Fig 1: Releasing Oil Filter Cover Using Special Tool 11 9 240

G09873563

Courtesy of BMW OF NORTH AMERICA, INC.

Release Bolt (1). Remove Oil Pipes (2) From Oil Filter Housing.

Release Holders of Supply/Return Lines On Oil Sump

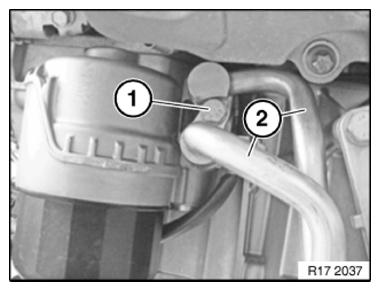

Fig 2: Identifying Oil Lines and Screw

G09873564

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten Screws (2).

Tightening torque: 11 41 1AZ .

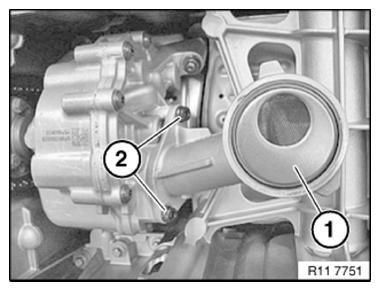

Fig 3: Identifying Screws

G09873565

Courtesy of BMW OF NORTH AMERICA, INC.

Release Bolts In Area of Line (1).

Tightening torque 11 13 2AZ .

Release Bolts (2) On Transmission Side 24 00 1AZ .

Remove Upper Oil Sump Section (3).

Installation Note:

Free Sealing Surfaces of Seal Debris and Clean.

Replace Gasket.

Modify Oil Pressure Switch If Replacing Oil Sump.

Assemble Engine.

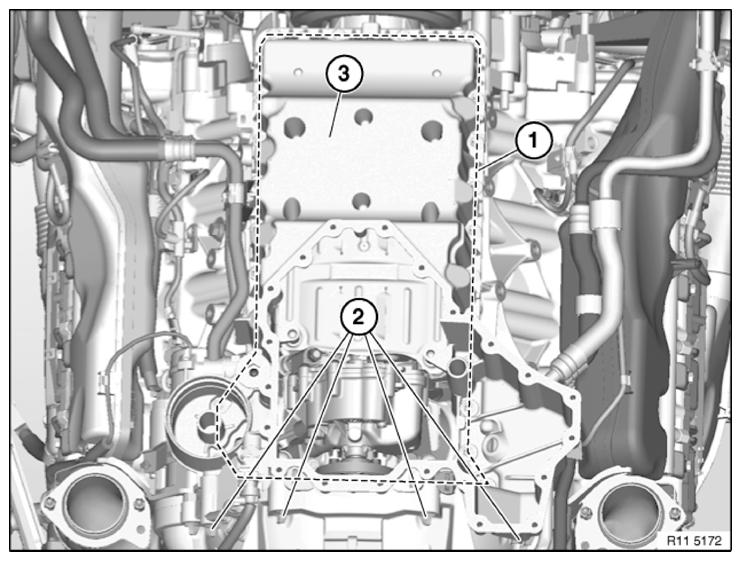

Fig 4: Identifying Upper Oil Sump Section and Bolts

G09873566

Courtesy of BMW OF NORTH AMERICA, INC.
