51 45 025 Removing and installing instrument panel trim

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANELS FOR ROOF PILLAR AT FRONT
Remove INSTRUMENT PANEL TRIM AT BOTTOM LEFT
Remove RIGHT GLOVEBOX WITH HOUSING
Remove CENTER FRESH-AIR GRILLE
Remove SPEAKER
Remove CENTRAL INFORMATION DISPLAY (CID)
Remove INSTRUMENT CLUSTER

NOTE: Observe the following instructions to facilitate removal of the instrument panel trim:

Move front seats back completely and lower
Move steering column into "lower" and "extended" position

Release screws (1) on right panel (2).

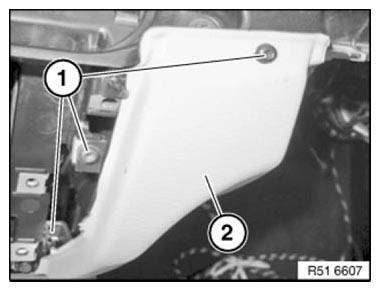

Fig 1: Removing Screws On Right Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert locator (1) of panel (2) correctly in lug of instrument panel carrier.

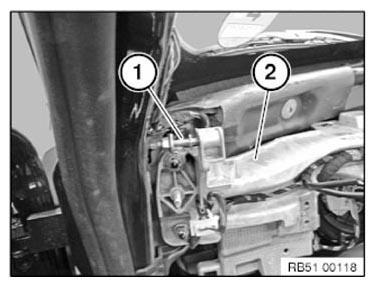

Fig 2: Identifying Panel And Locator

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wiring harness (1) to steering column on instrument panel carrier (2).

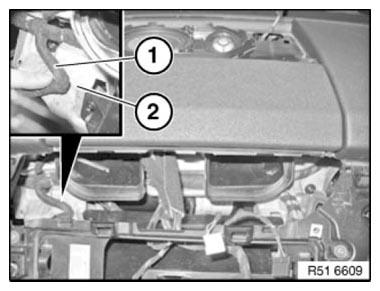

Fig 3: Identifying Instrument Panel Carrier With Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from temperature sensor (2).

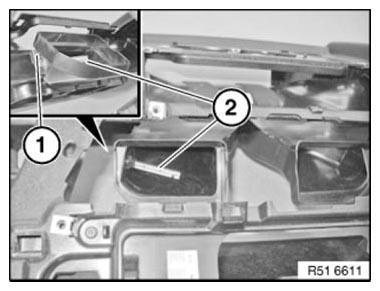

Fig 4: Identifying Temperature Sensor With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Secure steering column against falling out.

Release screws (1).

Tightening torque 32 31 3AZ .

Installation note:

Check steering column sleeve.

Fig 5: Identifying Steering Column Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity. Wiring harness is therefore not included in illustration.

Disconnect plug connection (1) from front passenger airbag unit.

(Observe notes regarding AIRBAG PLUG CONNECTIONS ).

Fig 6: Identifying Front Passenger Airbag Unit And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Identifying Instrument Panel With Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and nuts (3).

Remove trim for instrument panel (2)

NOTE: Illustration shows already removed instrument panel trim for better clarity.

If the instrument panel trim jams during removal, loosen the left and right studs (1).

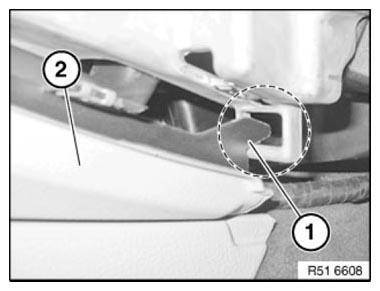

Fig 8: Identifying Instrument Panel Trim Studs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure guides (1) on instrument panel trim (2) are correctly seated in respective mountings.

Make sure gaskets are correctly seated on air ducts.

Make sure electrical leads are correctly laid.

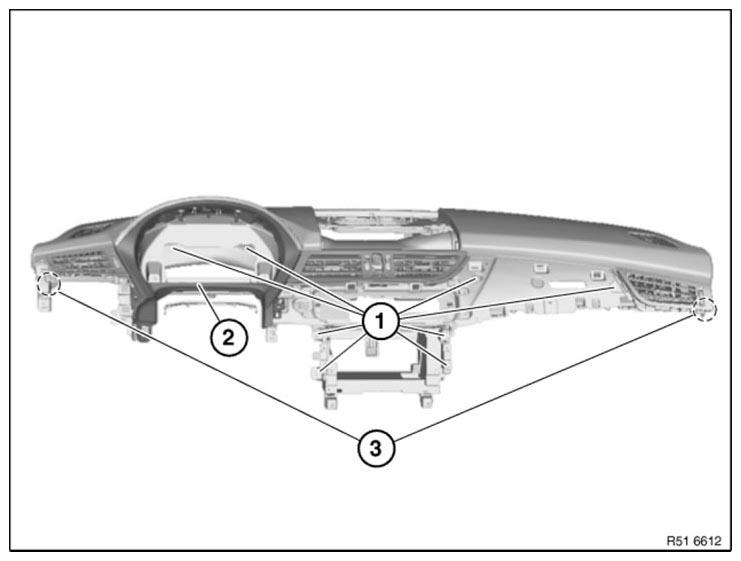

Fig 9: Identifying Guides On Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.
