65 50 057 Removing and installing/replacing Central Information Display (CID)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CENTER FRESH-AIR GRILLE

Lift trim (1) with special tool 00 9 317 out of latch mechanisms and remove upwards.

Fig 1: Opening Trim Using Special Tool (00 9 317) From Catches

Courtesy of BMW OF NORTH AMERICA, INC.

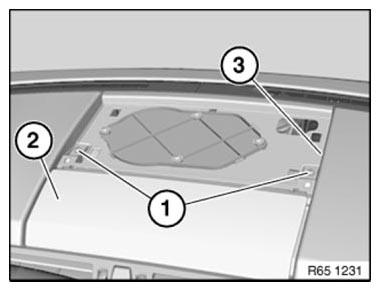

Release screws (1) from CID (2) on speaker carrier (3).

Fig 2: Identifying CID Screws On Speaker Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

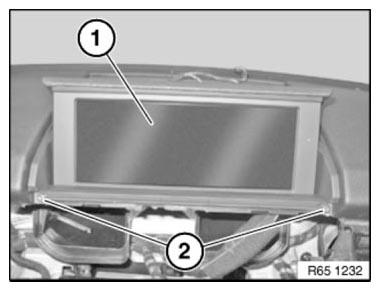

Fold out CID (1) manually.

Unfasten screws (2).

Remove CID (1) towards top.

Fig 3: Identifying CID With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

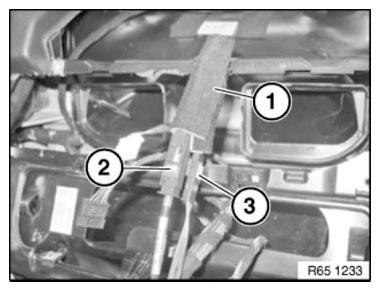

Slide protective sleeve (1) upwards.

Unfasten plug connection (2) and disconnect.

Disconnect plug connection (3).

Installation:

Ensure correct routing of cables.

Fig 4: Identifying Protective Sleeve With Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
