62 11 280 Removing and installing/replacing instrument cluster

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Extend steering column completely and set in downward position.

Release screw (1).

Fold back instrument cluster (2) in direction of arrow and pull out towards rear.

Unlock associated plug connection and disconnect.

Remove instrument cluster (2).

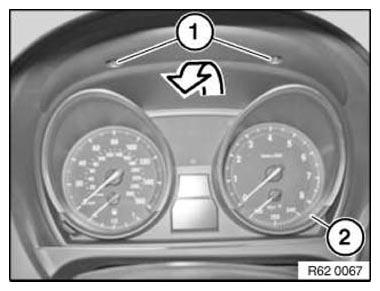

Fig 1: Pulling Out Instrument Cluster Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) of instrument cluster (2) must be exactly seated in mountings of instrument panel.

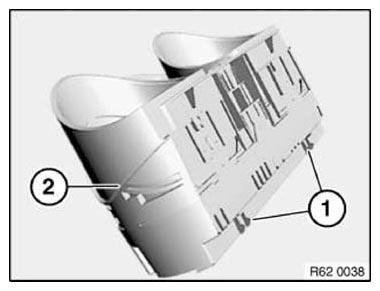

Fig 2: Identifying Instrument Cluster Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
