51 16 366 Removing and installing right glovebox with housing

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOWER INSTRUMENT PANEL TRIM

Release screws (1).

Remove lower glovebox trim (2).

Remove side trim (3).

If necessary, remove AIRBAG FRONT PASSENGER KNEE PROTECTION

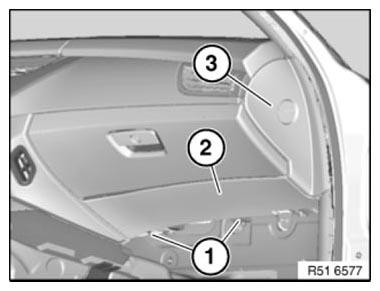

Fig 1: Identifying Lower Glovebox Trim With Side Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To be able to show screw position better, illustration shows glovebox cover removed.

Release screws (1).

Remove glovebox (2).

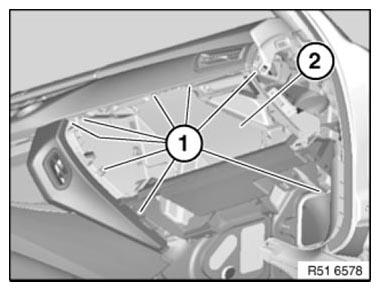

Fig 2: Identifying Glovebox With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
