64 22 165 Removing and installing or replacing middle fresh-air grille
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove RIGHT INSTRUMENT PANEL TRIM

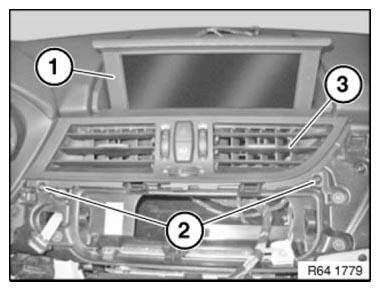

Gently fold in Central Information Display (1) manually.
Unfasten screws (2).
Pull out fresh-air grille (3) towards front.
Disconnect associated plug connections for hazard warning flashers and central locking.
