51 71 412 Removing and installing/replacing rear spoiler

Special tools required:

• 51 0 010

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

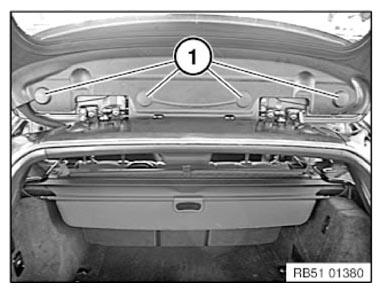

Lever out seal plugs (1) and release screws underneath.

Tightening torque: 51 71 1 AZ .

Fig 1: Rear Spoiler Seal Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

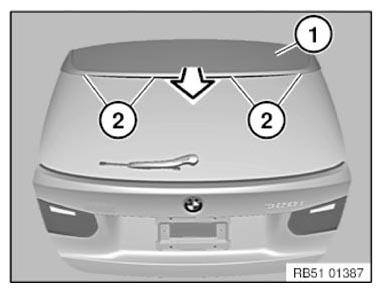

Pull rear spoiler (1) in the direction of arrow and pull out of guides.

Tilt rear spoiler (1) upwards slightly.

Fig 2: Pulling Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

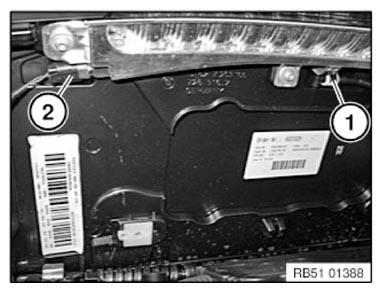

Disconnect connection (1) for washer jet and plug connection (2) at additional brake light.

Fig 3: Washer Jet And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

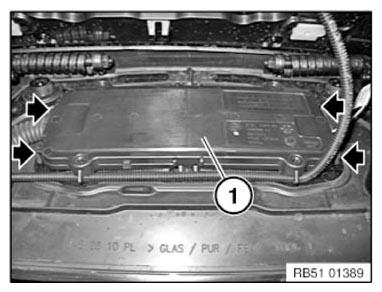

Lift out marked retaining lugs and remove cover (1) in the upwards direction.

Fig 4: Rear Spoiler Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

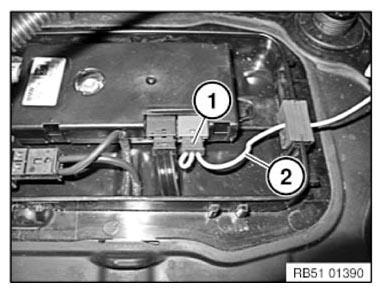

Disconnect plug connection (1).

Pull out cable (2) and remove rear spoiler.

Fig 5: Rear Spoiler Cable And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting the rear spoiler:

Observe BODY GAP DIMENSIONS .

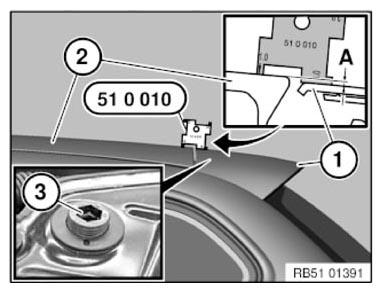

Press on rear spoiler (1) and measure gap of the rear spoiler (1) to the rear window (2) using special tool 51 0 010 .

A = 1 ±1 mm

Fig 6: Adjusting Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify ADDITIONAL BRAKE LIGHT .

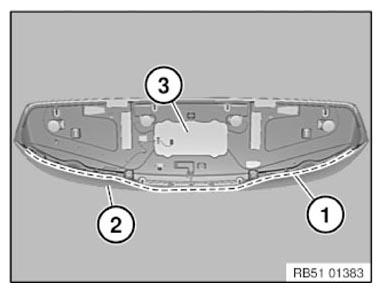

Using a suitable tool, lever out the retaining lugs (1) of the cover (2).

Pull cover (2) off the rear spoiler (3).

Modify the AERIAL if necessary.

Fig 7: Rear Spoiler Cover And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

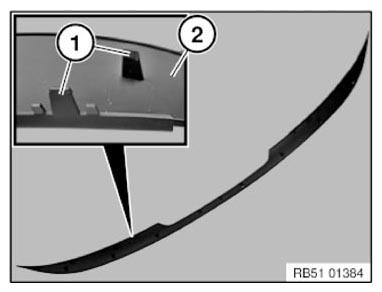

Retaining lugs (1) of cover (2) must not be damaged or missing.
