41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

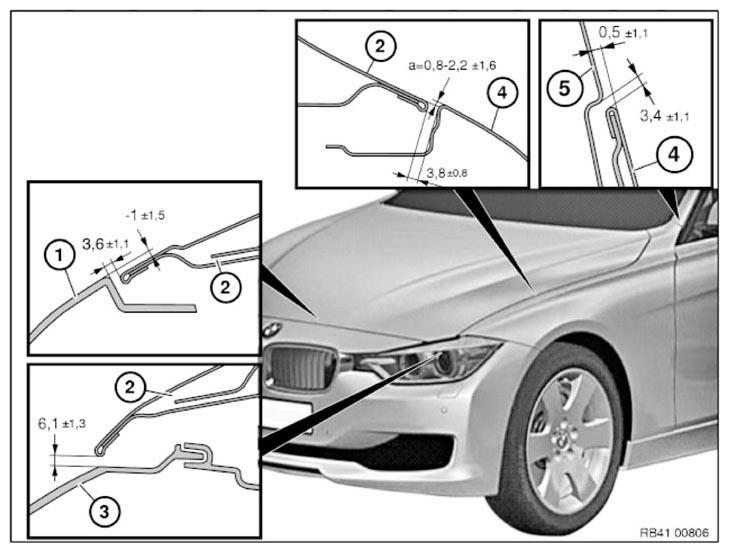

Fig 1: Hood, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension "a" increases in size in direction of travel from 0.8 mm at the front to 2.2 ± 1.6 mm.

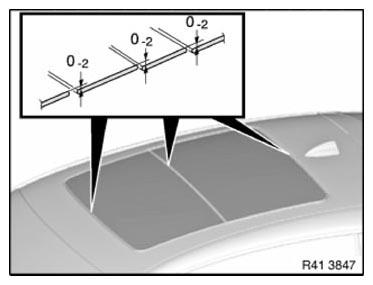

Fig 2: Sunroof Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

1. Side wall, front
2. Front door
3. Trim panel for entrance

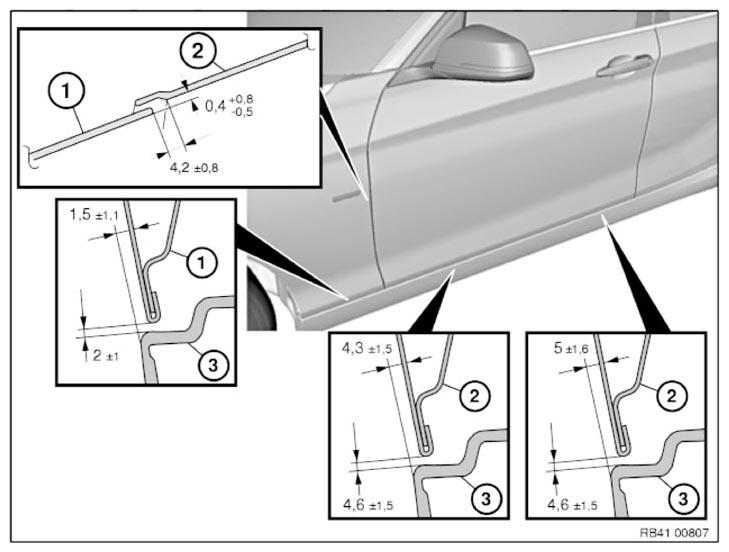

Fig 3: Front Fender, Front Door And Sill Trim Panel Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.

1. Front door
2. Rear door
3. Rear side wall
4. Trim panel for entrance

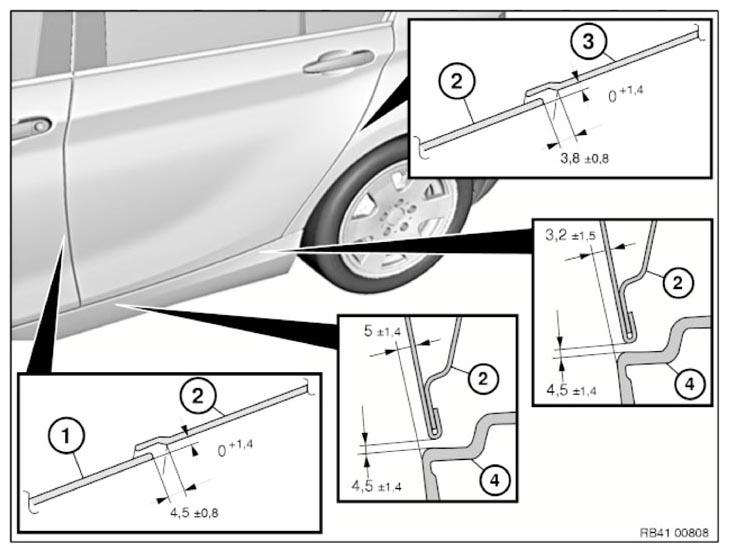

Fig 4: Front Door, Rear Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.

1. Roof outer shell
2. Rear spoiler
3. Rear side wall
4. Rear window
5. Rear lid
6. Panel, bumper, rear

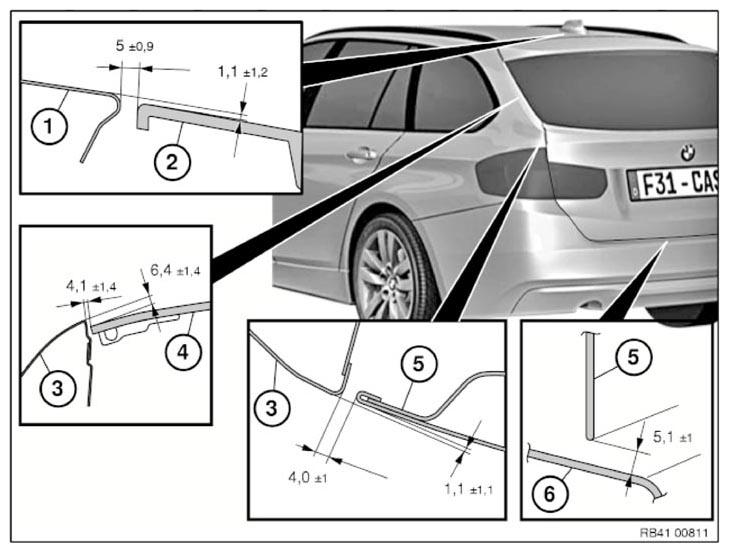

Fig 5: Roof, Rear Spoiler, Quarter Panel, Rear Glass, Rear Lid And Rear Bumper Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.
