63 25 000 Removing and installing/replacing additional brake light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the REAR SPOILER .

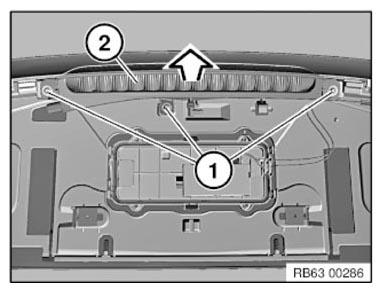

Release screws (1).

Tightening torque 63 25 2AZ .

Remove additional brake light (3) from the rear spoiler in the direction of arrow.

Fig 1: Removing Additional Brake Light From Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

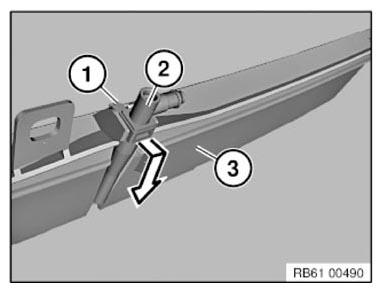

Unlock the latch mechanism (1) and remove the washer jet (2) from the additional brake light (3) in the direction of arrow.

Fig 2: Removing Washer Jet From Additional Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.
