65 24 100 Removing and installing/replacing aerial

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove ADDITIONAL BRAKE LIGHT

Using a suitable tool, lever out the retaining lugs (1) of the cover (2).

Pull cover (2) off the rear spoiler (3).

Fig 1: Identifying Rear Spoiler And Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) of cover (2) must not be damaged or missing.

Fig 2: Identifying Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

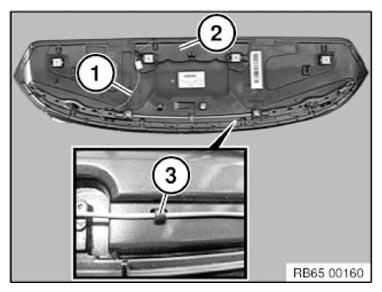

Feed out aerial (1) at all mountings (3) on rear spoiler (2).

Fig 3: Identifying Rear Spoiler Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
