41 35 081 Removing And Installing Front Side Panel On Left: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Observe BODY GAP DIMENSIONS .

IMPORTANT: Do not damage adjoining body components.

Necessary preliminary tasks:

Remove SIDE REPEATER
Remove wheel arch covers. See WHEEL ARCH COVER (FRONT SECTION) and WHEEL ARCH COVER (REAR SECTION)
Remove TRIM PANEL FOR COVER ON SIDE MEMBER
Partially loosen BUMPER TRIM on the side
Remove SEAL MOUNTING for engine compartment lid

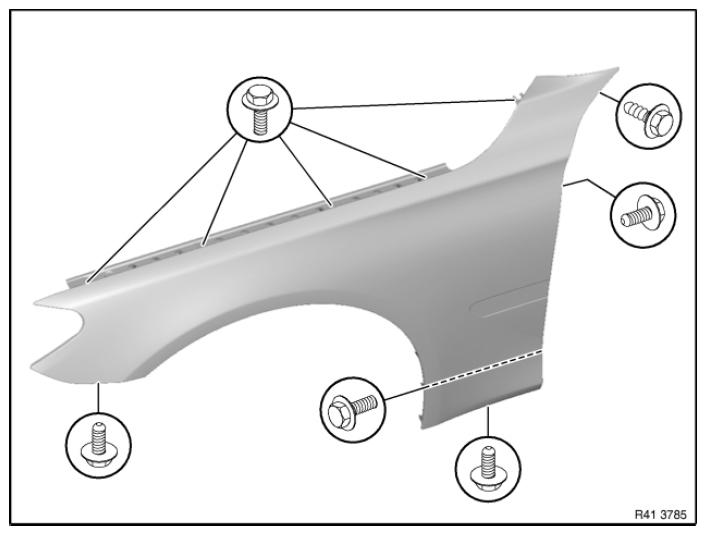

Fig 1: Identifying Trim Panel Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 41 35 1AZ .

Tightening torque 41 35 2AZ .
