63 13 200 Removing and installing/replacing front left or right auxiliary turn indicator

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

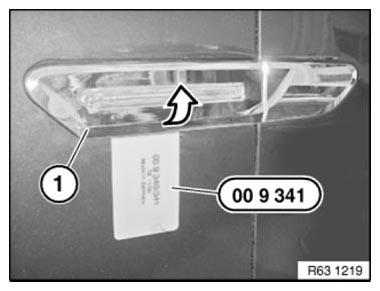

Slide front auxiliary turn indicator (1) with special tool 00 9 341 in upward direction and fold out in direction of arrow.

Fig 1: Sliding Front Auxiliary Turn Indicator Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

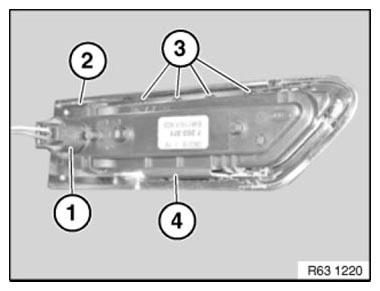

Disconnect plug connection (1). Remove front auxiliary turn indicator (2).

Installation:

Make sure guides (3) and catch (4) are correctly installed.

Fig 2: Identifying Front Auxiliary Turn Indicator And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
