51 71 038 Removing and installing/replacing front left or right wheel arch cover (front section)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
Necessary preliminary tasks:
- Remove right or left FRONT WHEEL
NOTE:
The operation is described on the left side; proceed in the same way for the right side.
Unscrew all bolts.

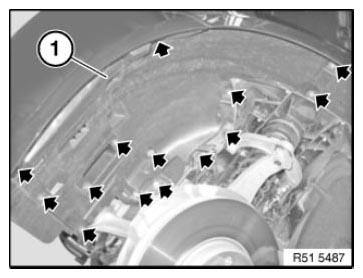

Remove front wheel arch cover (1).
Installation:
Make sure front wheel arch cover (1) and cooling air guide are correctly seated.
