51 46 001 Removing and installing/replacing trim panel for storage shelf: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove backrest. See BACKREST (NORMAL REAR SEAT) or BACKREST ELECTRIC REAR SEAT) .
Only with optional equipment Comfort seat:
- Remove HEAD RESTRAINTS
- Remove ARMREST
With optional rear air conditioning only:
- Remove luggage compartment partition wall
Remove TRIM FOR ROOF PILLAR AT REAR
In F01/02/03/04 only:
- Remove BELT FEED TRIM on left and right

NOTE: Graphics are only an example (The graphics used are from F01).

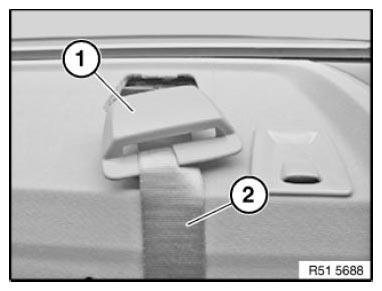

Lever out center seat belt finisher strip (1) with plastic wedge and feed out seat belt strap (2).

Fig 1: Identifying Centre Seat Belt Finisher Strip And Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Version with decorative strip only:

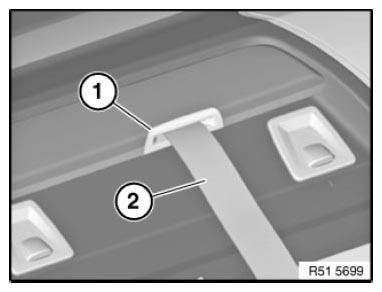

Unclip center seat belt finisher strip (1) from decorative trim and feed out seat belt strap (2).

Fig 2: Identifying Centre Seat Belt Finisher Strip And Seat Belt Strap
Courtesy of BMW OF NORTH AMERICA, INC.

In F01/02/03/04 only:

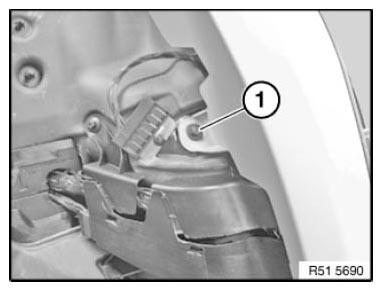

Release plastic nut (1) on C-pillar trim panel.

Fig 3: Identifying C-Pillar Trim Panel Plastic Nut
Courtesy of BMW OF NORTH AMERICA, INC.

In F01/02/03/04 only:

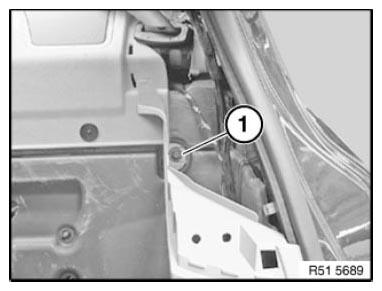

Release plastic nut (1) on C-pillar trim panel.
Disengage guide lug of C-pillar trim panel at top from storage shelf.

Fig 4: Identifying C-Pillar Trim Panel Plastic Nut
Courtesy of BMW OF NORTH AMERICA, INC.

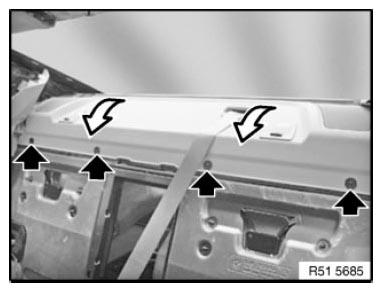

Release attachment sleeves and pull storage shelf forwards.

Unlock and disconnect underlying plug connections.

Fig 5: Pulling Storage Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
