52 25 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Sliding blocks (1) are spring-mounted.

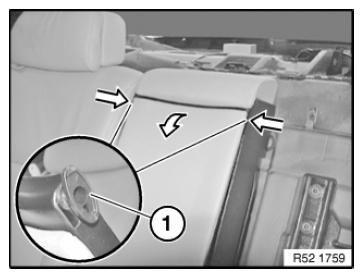

Press sliding blocks (1) on left and right inwards and tilt cover forwards.

Fig 1: Pressing Sliding Blocks On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

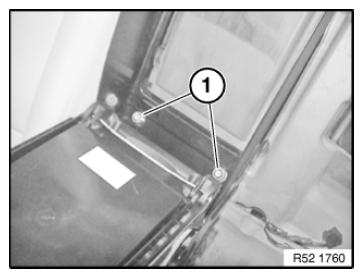

Release screws (1).

Tightening torque 52 25 01AZ .

Lever out armrest towards front.

Fig 2: Identifying Rear Seat Backrest Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

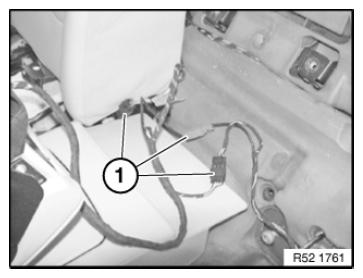

Unlock plug connections (1) and disconnect.

Installation:

Plug connections (1) are coded against incorrect installation.

Fig 3: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
