51 43 251 Removing and installing or replacing trim panel from rear left or right roof pillar
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems (risk of injury).
IMPORTANT:
Do not use any sharp-edged tools to remove trim panel (risk of damage to head airbag).
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

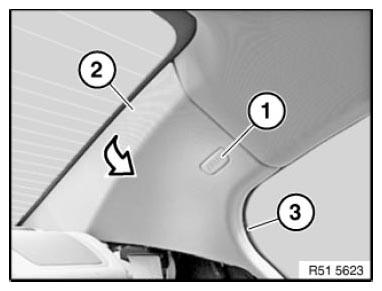

Lift out protective cap (1) with plastic wedge.
Release screw underneath.
Tightening torque 51 43 2AZ .
Remove trim panel (2).
Installation note:
Make sure trim panel (2) is correctly seated in edge protection (3).
Installation note:

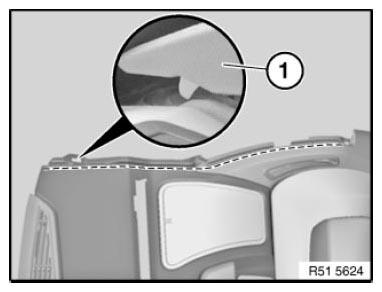

Make sure guide lug of cover (1) is correctly seated in rear storage shelf.
Make sure trim panel (1) is correctly seated in groove of rear storage shelf and belt cover.
