51 43 310 Removing and installing belt feed cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR ROOF PILLAR
Remove rear seat. See BACKREST FOR REAR SEAT and REAR SEAT .

Release screw (1).

Tightening torque 72 11 22AZ .

Installation note:

End fitting is coded against incorrect assembly.

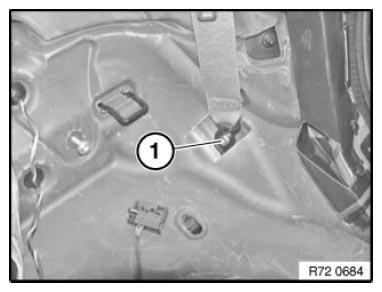

Fig 1: Identifying Belt Feed Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release expanding rivet.

Remove cover.

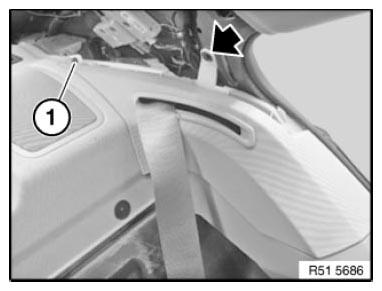

Fig 2: Identifying Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out seat belt finisher strip (1) and feed out seat belt strap (2).

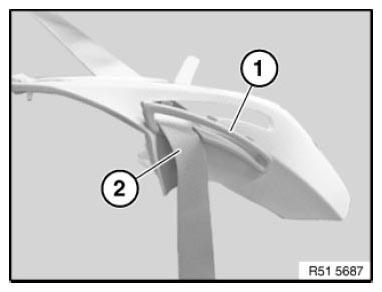

Fig 3: Identifying Seat Belt Finisher Strip And Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.
