52 24 010 Removing and installing/replacing backrest for rear seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT
Remove LEFT AND RIGHT HEAD RESTRAINTS

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 52 24 01AZ .

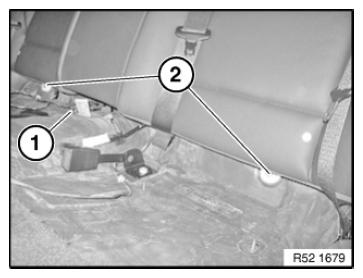

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Open center armrest.

Detach cover from adhesive band.

Release screws (1).

Tightening torque 52 24 01AZ .

Remove backrest.

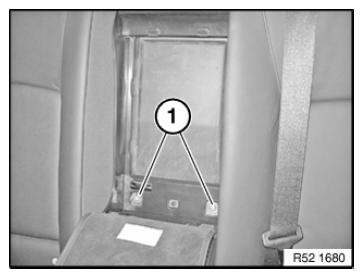

Fig 2: Identifying Backrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.
