51 45 460 Removing and installing/replacing upper instrument panel storage compartment
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT
- Remove DECORATIVE STRIP ON STORAGE COMPARTMENT/DVD CHANGER INSTRUMENT PANEL
- Remove DECORATIVE STRIP ON INSTRUMENT PANEL IN MIDDLE
- With DVD changer fitted:
- F01/02: CLAMP OFF BATTERY NEGATIVE LEAD
- F03: Remove both negative battery cables

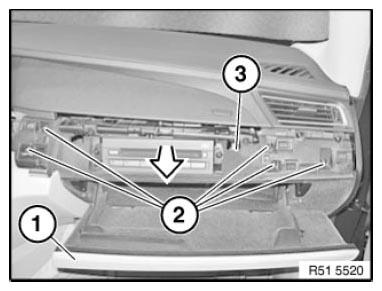

Open glove box (1).
Release screws (2) on upper instrument panel storage compartment (3).
Pull out upper instrument panel storage compartment (3) towards front.
If necessary, unlock and disconnect plug connection for DVD changer.
Remove upper instrument panel storage compartment (3).
Replacement:
If necessary, remove CD CHANGER .
