51 45 380 Removing and installing/replacing right decorative strip on instrument panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip decorative strip (1) at the side using special tool 00 9 317 .

Installation:

If necessary, replace faulty clips (2) on back of decorative strip (1).

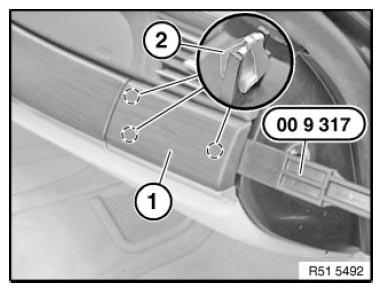

Fig 1: Removing Decorative Strip Using Special Tool (00 9 317)
G08508481Courtesy of BMW OF NORTH AMERICA, INC.
