51 45 385 Removing and installing/replacing middle decorative strip on dashboard
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.
Necessary preliminary tasks:

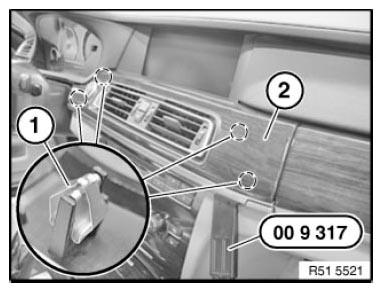

Unclip decorative strip (2) at marked points with special tool 00 9 317 .
If necessary, replace faulty clamps (1).
Unlock and disconnect plug connections behind decorative strip (2) - for Start/Stop, hazard warning flashers/central locking and lid control.
Remove decorative strip (2).
