65 11 075 Removing and installing/replacing DVD changer

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

F01/02: DISCONNECT BATTERY EARTH CABLE .
F03: Disconnect both battery earth cables
Remove DECORATIVE STRIP ON STORAGE COMPARTMENT/DVD CHANGER INSTRUMENT PANEL

NOTE: Affects all vehicles from series introduction to 09/2009 with DVD changer (SA696)!

When a new DVD changer (2) is being replaced (as of 09/09 ), conversion to ISTA/P must be carried out. ("Converting replacement DVD changer" )

If the old DVD changer (1) is installed (up to 09/09) , this conversion to ISTA/P must not be carried out.

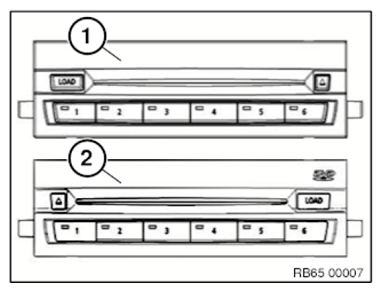

Fig 1: Identifying DVD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

The old DVD changer (1) and the DVD changer (2) have an external difference in that the Load and Eject buttons are swapped round.

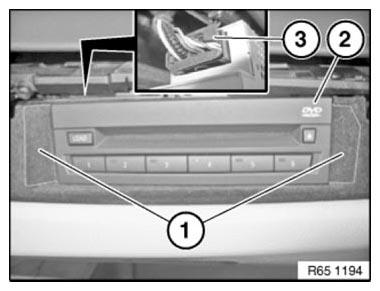

Unclip trims (1) with a suitable tool and release screws behind.

Pull DVD changer (2) out of guide.

Unlock associated plug connection (3) and disconnect.

Remove DVD changer (2).

Fig 2: Identifying Trims, DVD Changer And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
