51 45 388 Removing and installing/replacing decorative strip on storage compartment/DVD changer dashboard

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Actuate switch (2) and open storage compartment/DVD changer (1).

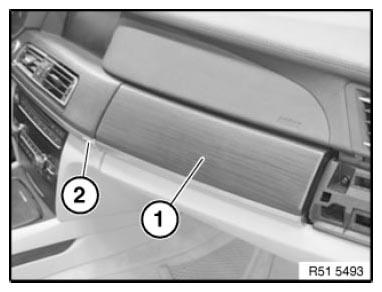

Fig 1: Identifying Storage Compartment/DVD Changer And Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and feed out decorative strip (2) towards front.

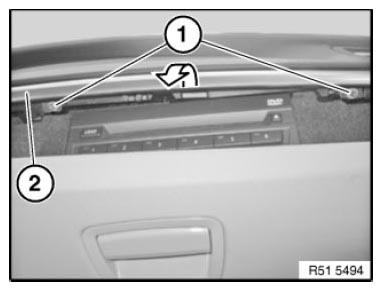

Fig 2: Feeding Out Decorative Strip With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install decorative strip in opened state. Retaining lugs (2) must be seated in marked guides.

Brackets (1) must be seated before thread locators (3).

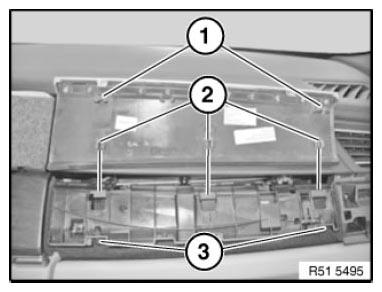

Fig 3: Identifying Brackets, Retaining Lugs And Thread Locators

Courtesy of BMW OF NORTH AMERICA, INC.
