51 11 141 Removing and installing/replacing bumper panel lower section

Necessary preliminary work:

• Remove BUMPER PANEL
• Remove number plate and associated support
• Remove ORNAMENTAL GRILLE  at side left and right

Release left and right screws (1).

Release bumper panel lower section (2) at latch mechanisms (3) and remove.

Installation note:

Retaining tabs and securing eyes must not be damaged.

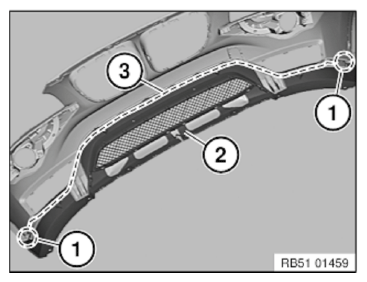

Fig 1: Identifying Bumper Panel Lower Section, Screws And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

• Modify ORNAMENTAL GRILLE
• Modify all ultrasonic sensors. See FRONT (SIDE) ULTRASONIC SENSOR and FRONT ULTRASONIC SENSOR (CENTER) .
• Modify FRONT SPOILER
