51 11 180 Removing and installing/replacing ornamental grille in bumper panel

Necessary preliminary work:

• Remove BUMPER PANEL

Side ornamental grille:

Release ornamental grille (1) from latch mechanisms and remove.

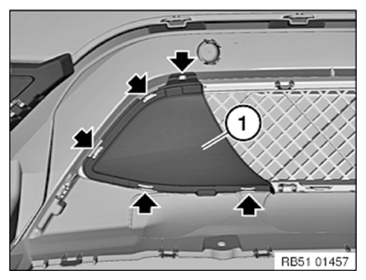

Fig 1: Locating Latch Mechanisms On Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Center ornamental grille:

Release cover (1) from latch mechanisms and remove.

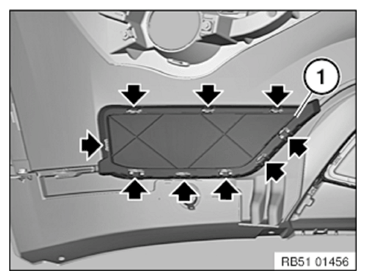

Fig 2: Locating Latch Mechanisms On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release ornamental grille (1) from latch mechanisms (2) and remove.

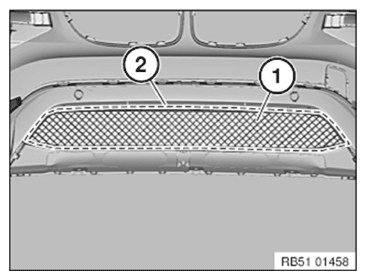

Fig 3: Identifying Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
