66 20 520 Removing and installing/replacing a front ultrasonic sensor (center)

Necessary preliminary tasks:

Disconnect plug connection (1) and unclip ultrasonic sensor from retaining tabs (2).

Installation note:

Clean the plug connection (1) before installing the ultrasonic sensor on the wiring harness!

Retaining tabs (2) must not be damaged!

Make sure ultrasonic sensor is securely seated.

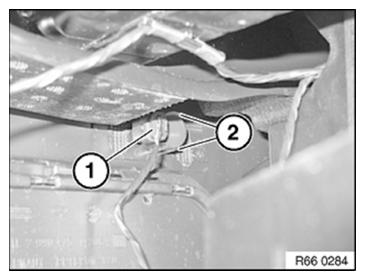

Fig 1: Identifying Ultrasonic Sensor Plug Connection And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 2: Identifying Rubber Ring And Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
