66 20 518 Removing and installing/replacing a front (side) ultrasonic sensor

Necessary preliminary tasks:

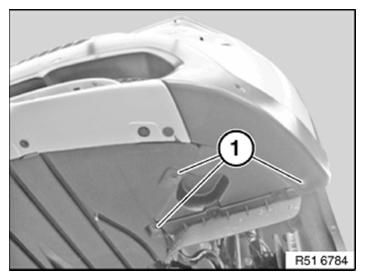

Release screws (1).

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

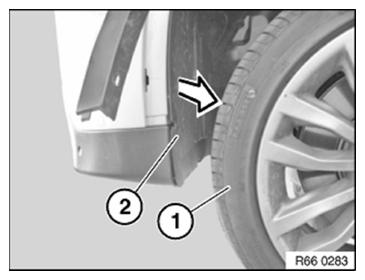

Turn wheel (1) inwards side to provide more space in work area.

Pull wheel arch cover (2) to one side in direction of arrow.

Fig 2: Pulling Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

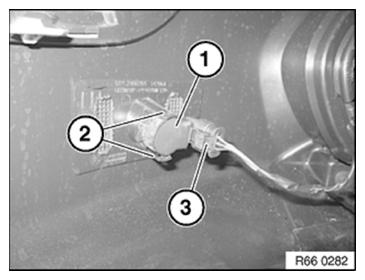

Unclip ultrasonic sensor (1) from retaining tabs (2).

Unfasten plug connection (3) and disconnect.

Installation note:

Clean the plug connection (3) before installing the ultrasonic sensor (1) on the wiring harness!

Retaining tabs (2) must not be damaged!

Make sure ultrasonic sensor is securely seated.

Fig 3: Identifying Ultrasonic Sensor And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 4: Identifying Rubber Ring And Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
