51 11 156 Removing and installing front bumper trim

Necessary preliminary tasks:

Version with headlight cleaning system:

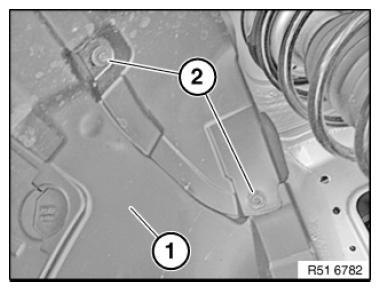

Release screws (2) on front wheel arch cover (1).

Fig 1: Identifying Wheel Arch Cover (Front) And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Turn wheel arch cover inwards.

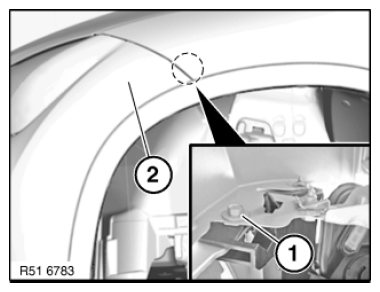

Release screw (1).

Unclip bumper (2) on bracket and pull away.

Installation note:

Install bumper (2) level with side section.

Fig 2: Locating Screw

Courtesy of BMW OF NORTH AMERICA, INC.

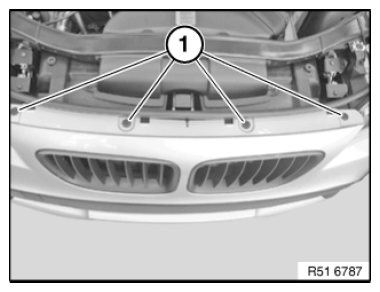

Release screws (1).

Fig 3: Identifying Bumper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

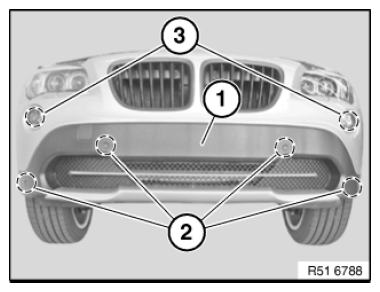

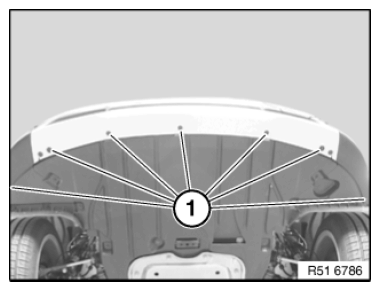

Release screws (1).

Tightening torque 51 11 1AZ .

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following tasks must be carried out with a second person assisting:

Pull bumper panel (1) forwards a little.

If necessary, disconnect plug connections on ultrasonic sensors (2) and/or on fog lights (3).

Remove bumper panel (1) towards front with aid of a 2nd person.
