63 12 001 Removing and installing/replacing left headlight (up to 03/2005)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim, refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM

N62 only:

Remove left design cover

Unlock and disconnect all plug connections (1) on headlight (2).

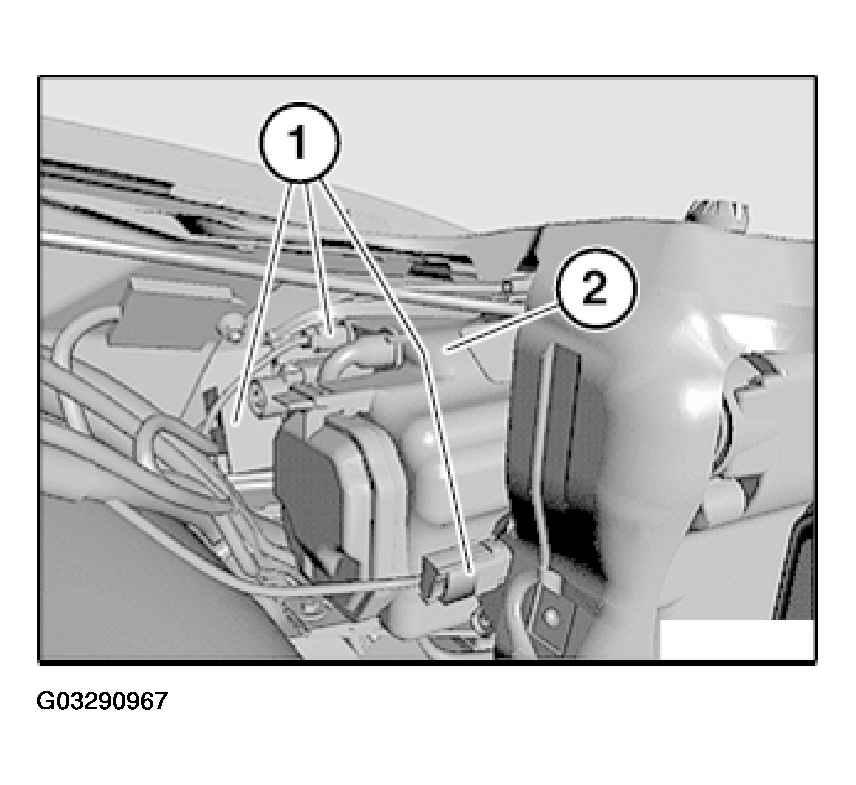

Fig 1: Unlocking And Disconnecting Plug Connections On Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on headlight (2).

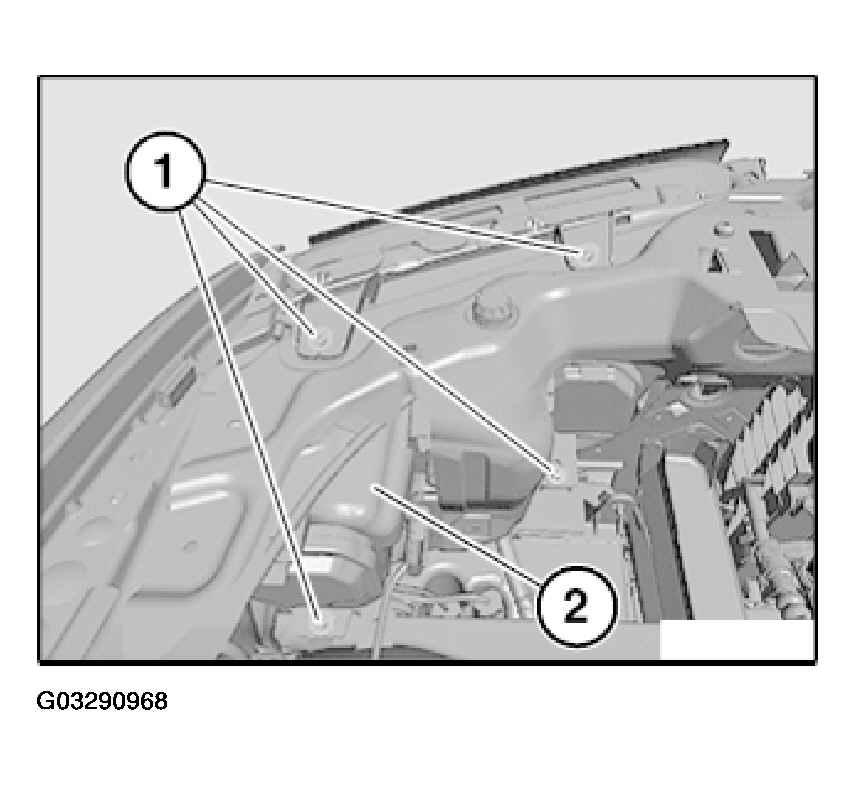

Fig 2: Releasing Screws On Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten screws (1) hand-tight only.

Pull headlight fully towards front.

Close hood/bonnet and adjust headlight to fit.

Open hood/bonnet and tighten down screws (1).

Remove headlight (1) towards front.

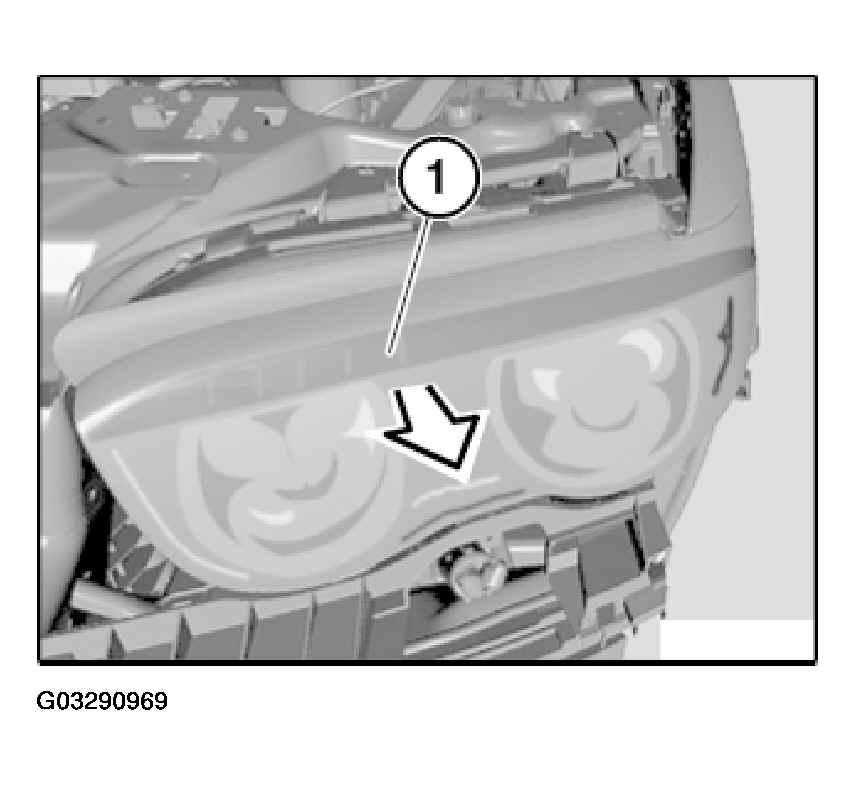

Fig 3: Removing Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs, refer to 63 99 076 REPLACING LEFT LAMP FOR LEFT XENON LIGHT , 63 99 077 REPLACING RIGHT LAMP FOR XENON LIGHT or 63 99 273 REPLACING BULB FOR TURN INDICATOR, FRONT LEFT

Installation:

Adjust headlight. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
