51 11 156 Removing and installing front bumper trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove baseplate for number/license plate, refer to 51 11 158 Replacing baseplate for license plate

Build date up to 03/2005:

Remove both fog lamps, refer to 63 17 060 REMOVING AND INSTALLING (REPLACING) LEFT OR RIGHT FOG LAMP

Build date from 03/2005:

Remove both side grilles

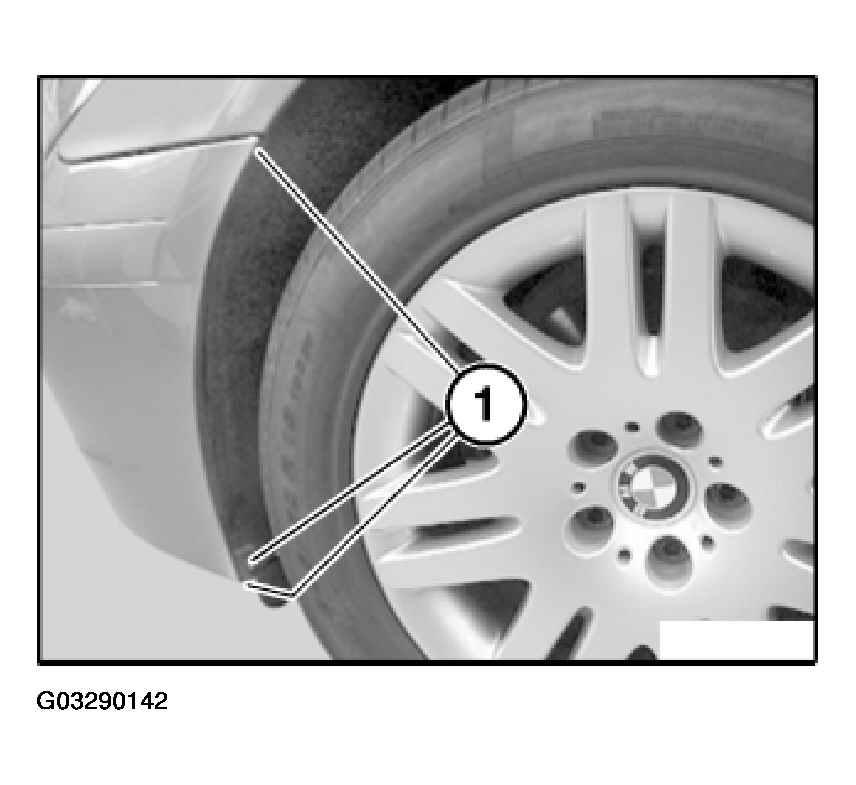

Release screws (1) or clip (1) on left/right.

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

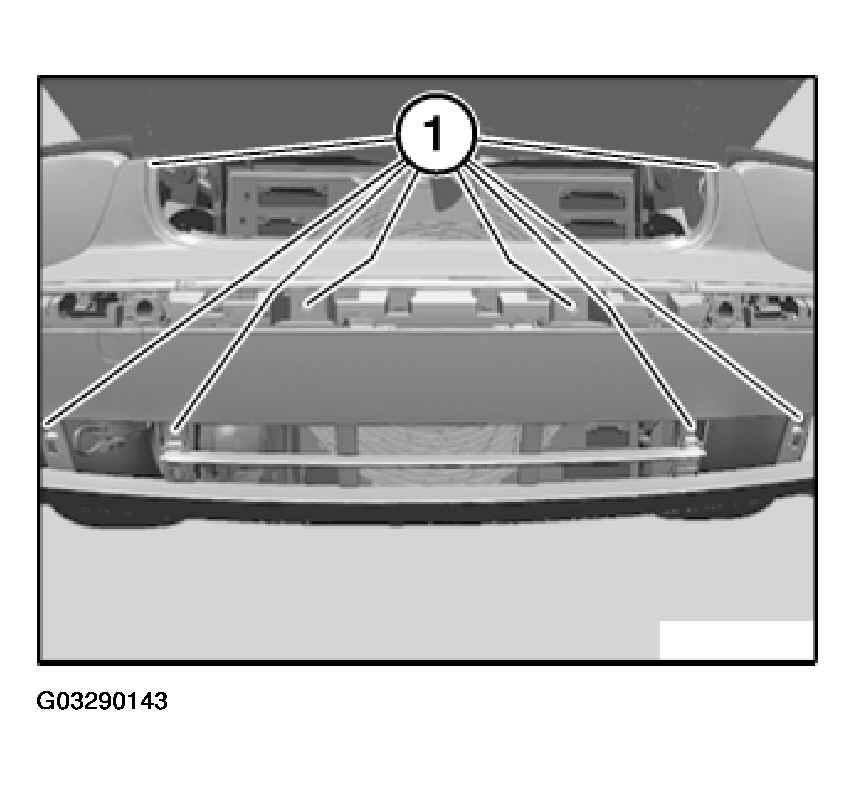

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bumper trim must not be pulled out sideways (risk of damage).

Remove bumper trim straight towards front with aid of a 2nd person.

If necessary, disconnect additional plug-in contacts and feed out cable.

Installation:

Observe gap dimensions.
