63 10 004 Adjusting headlights

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Observe test preconditions for adjusting headlights. Refer to 63 10... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

CAUTION: Do not damage adjusting screws when adjusting headlights.

Carry out headlight adjustment at adjusting screws below openings (1) and (2).

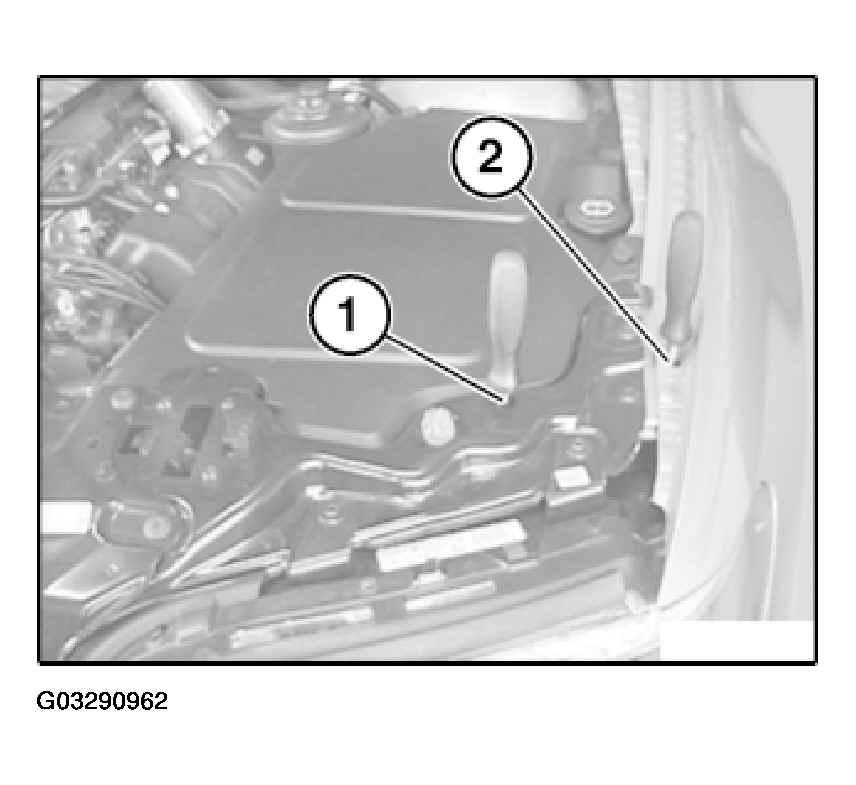

Fig 1: Identifying Screws For Vertical And Lateral Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

A definite allocation of adjusting screws is not possible.

Adjustment screw primarily for vertical adjustment
Adjustment screw primarily for lateral adjustment
