63 99 076 Replacing left lamp for left xenon light
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Necessary preliminary tasks:
- Remove ignition unit for left xenon headlight. Refer to 63 12 870 REPLACING IGNITION UNIT FOR LEFT XENON HEADLIGHT (UP TO 03/2005) .

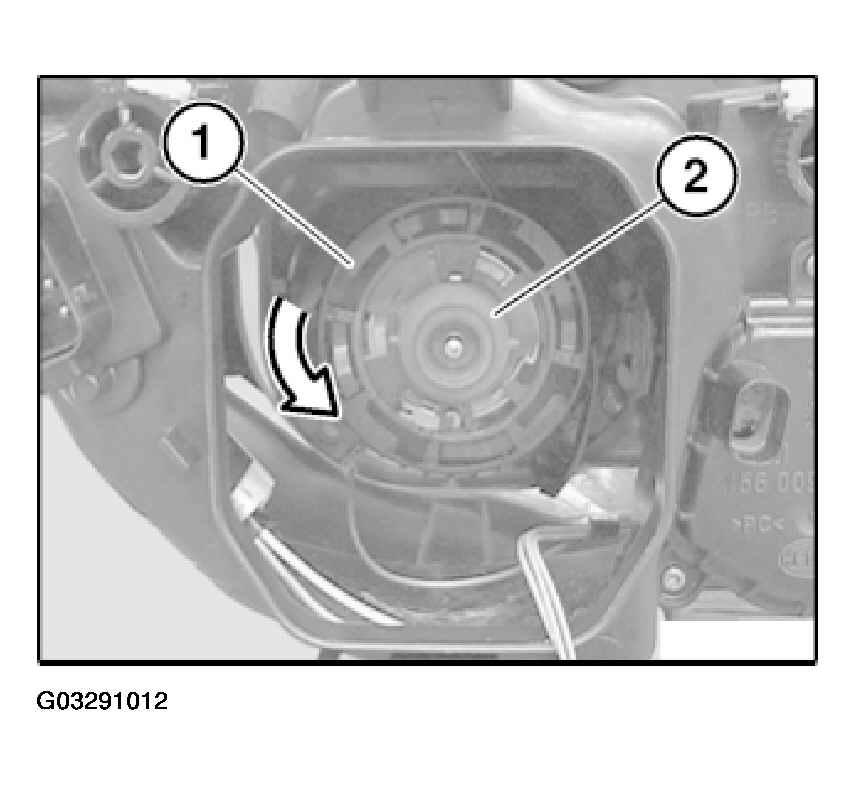

Turn retaining ring of lamp for xenon light (1) in direction of arrow and remove.
Remove lamp for xenon light (2).
Installation:
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - 745I - E65 .
Installation:

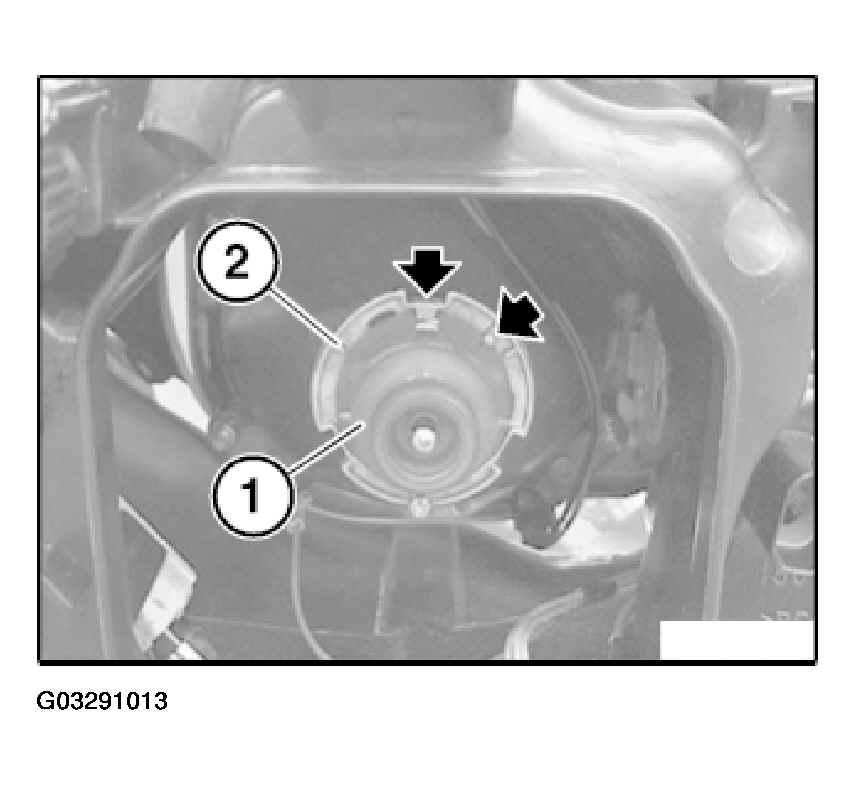

Insert lamp for xenon light (1) exactly in fixture (2).
