63 99 273 Replacing bulb for turn indicator, front left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Turn bulb holder (1) approx. 30° in direction of arrow.

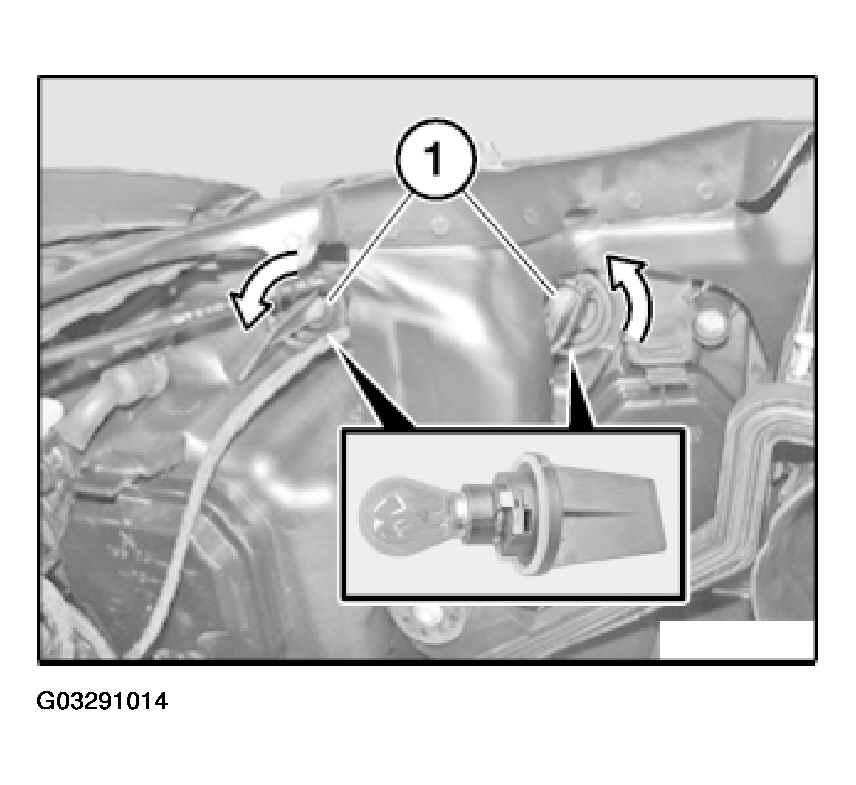

Fig 1: Replacing Bulb For Turn Indicator - Front Left

Courtesy of BMW OF NORTH AMERICA, INC.

Feed bulb holder (1) out of headlight.

Remove bulb from bulb holder (1).

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA - 745I - E65 .
