51 11 157 Replacing Front Bumper Trim
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

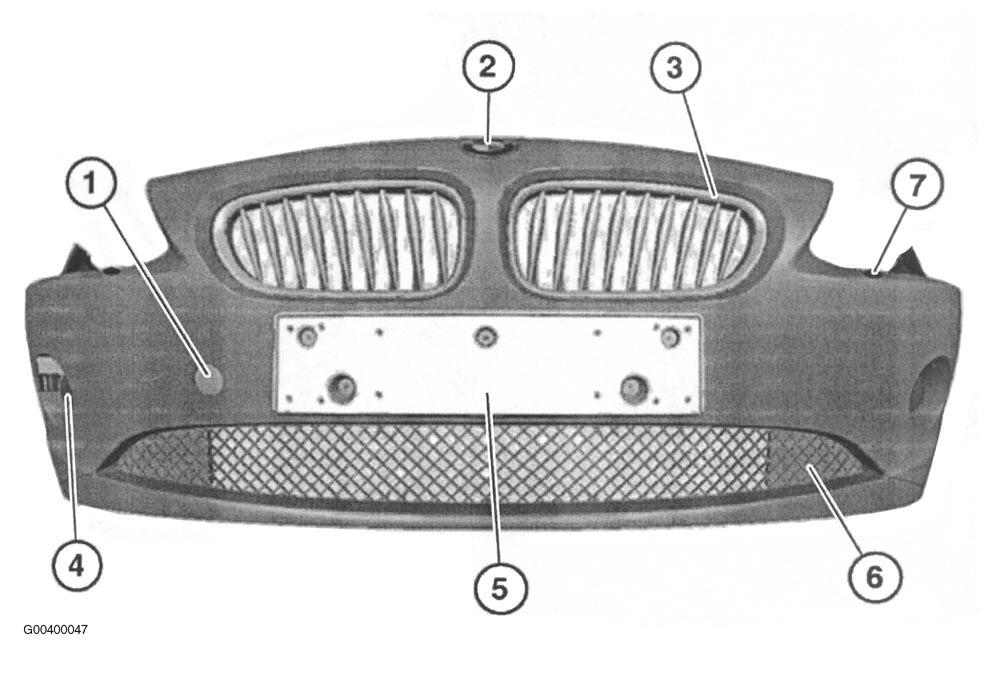

Remove front bumper trim .
Remove cover cap (1) for tow lug.
Remove BMW badge (2).
Remove front radiator grille (3) on left/right.
Remove front fog lamps (4) on left/right (not for M Roadster). See 63 17 060 REMOVING AND INSTALLING (REPLACING) FOG LIGHTS .
Remove license plate holder (5).
Remove trim grille (6).
