51 14 001 Replacing front BMW badge (removing and replacing)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Middle Front Radiator Grill .

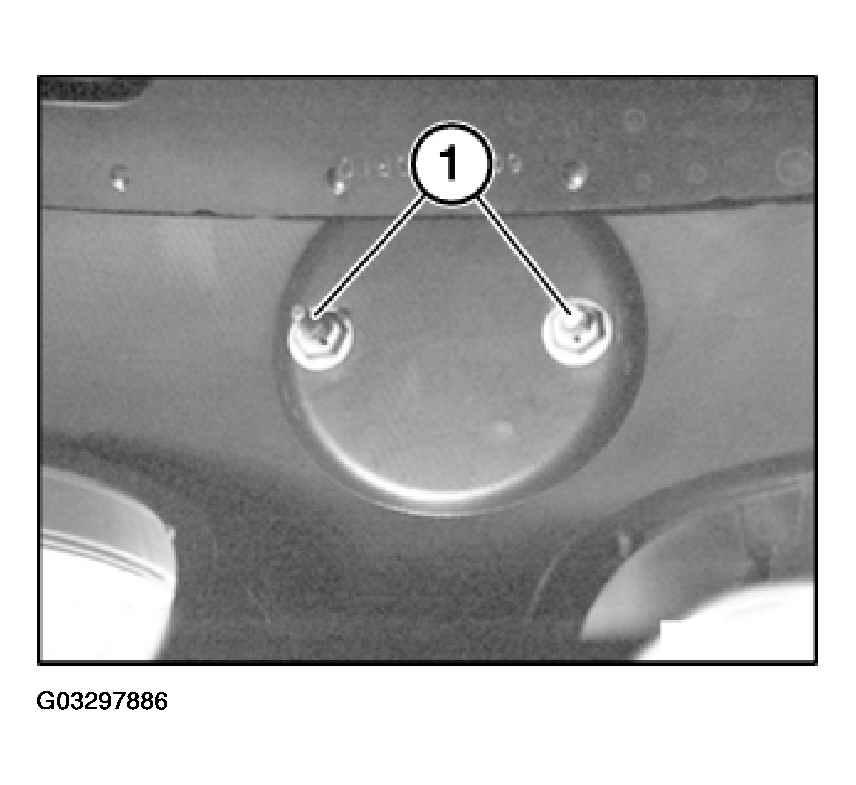

Release plastic nuts (1).
Remove badge towards front.
Installation:
Only tighten plastic nuts (1) slightly.
