51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Press middle front radiator grill (1) upwards and pull towards front.

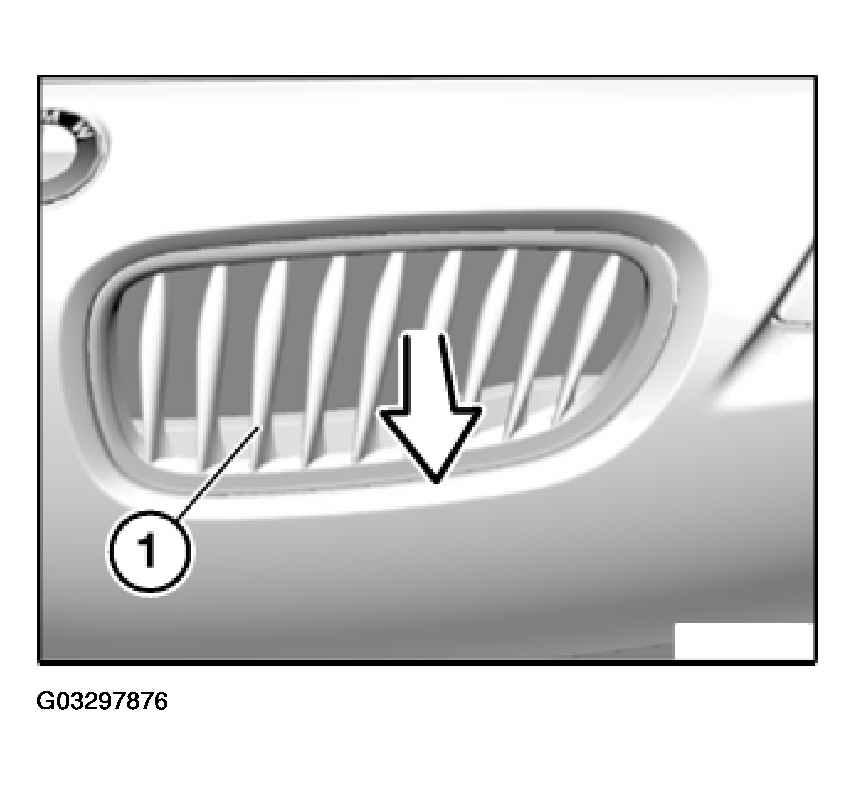

Fig 1: Identifying Front Radiator Grill
G03297876Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. All catches and guides on middle front radiator grill must not be damaged.
  2. Push front radiator grill (2) into bumper trim by pressing on chrome ring.
  3. Fixtures (1) must engage correctly.

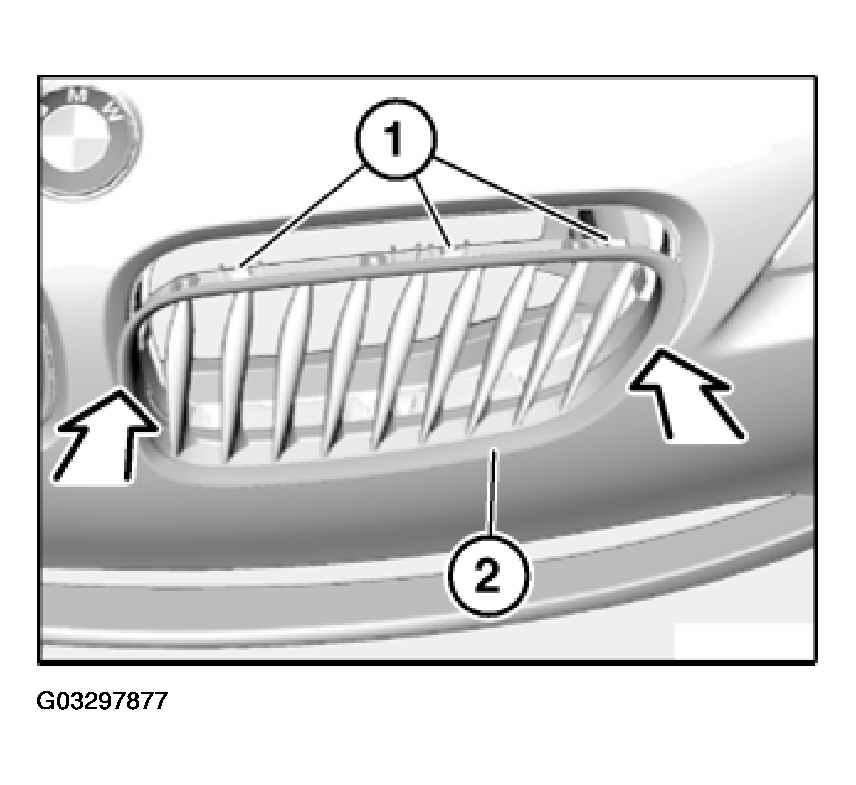

    Fig 2: Pushing Front Radiator Grill Into Bumper Trim
    G03297877Courtesy of BMW OF NORTH AMERICA, INC.
