63 17 060 Removing and installing (replacing) left or right front fog lamp

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

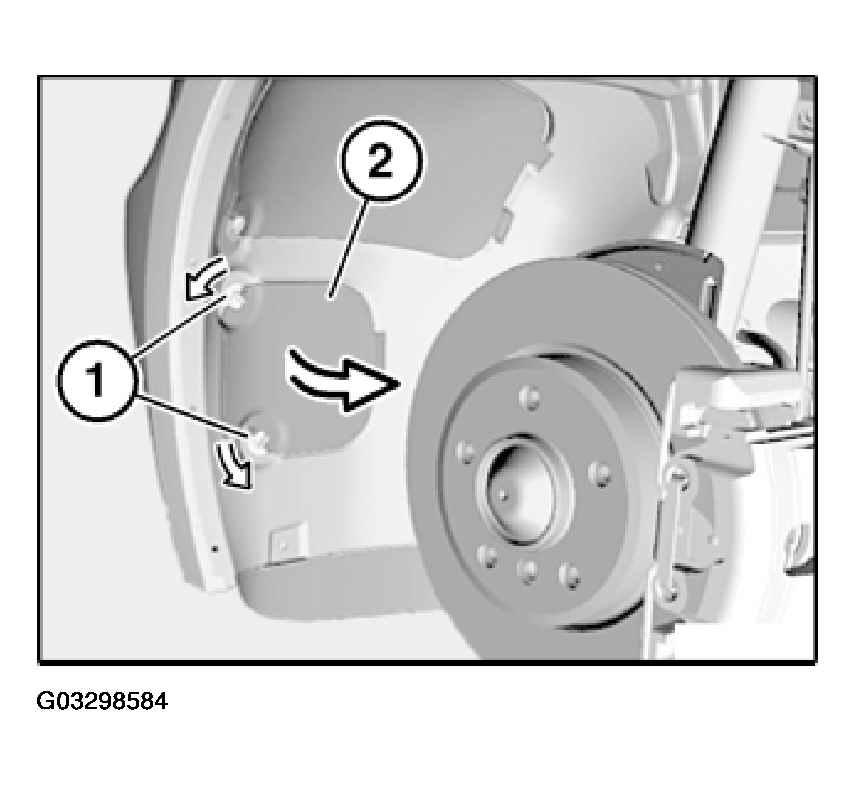

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Release screw (2) and remove front fog lamp (3).

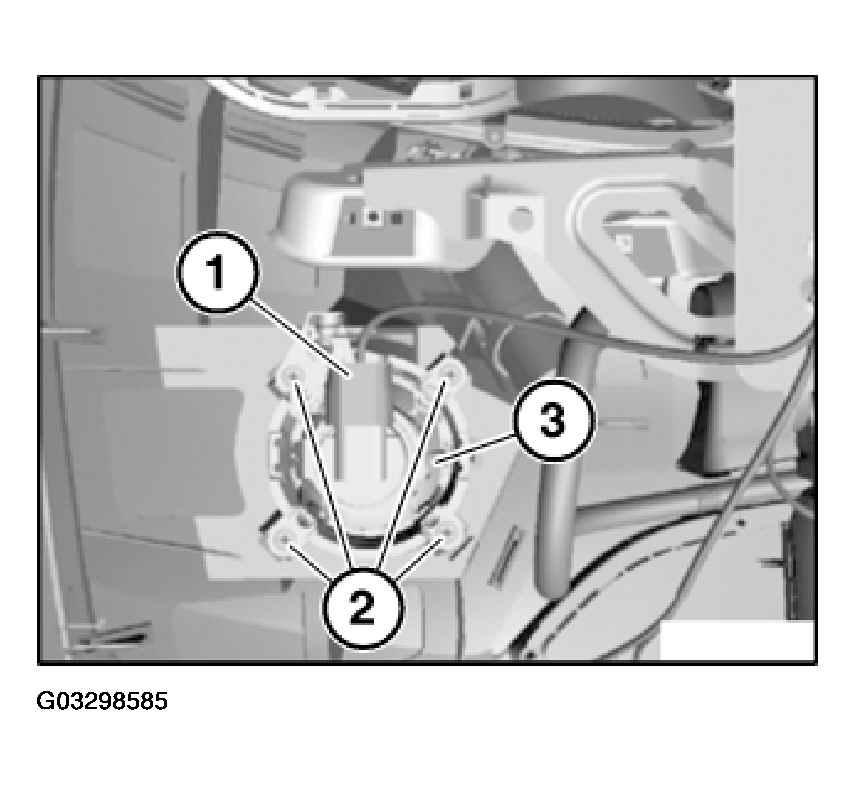

Fig 2: Removing Front Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

If necessary, remove Bulb .

Installation:

Adjust Front Fog Lamps .
