51 11 156 Removing and installing front bumper trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

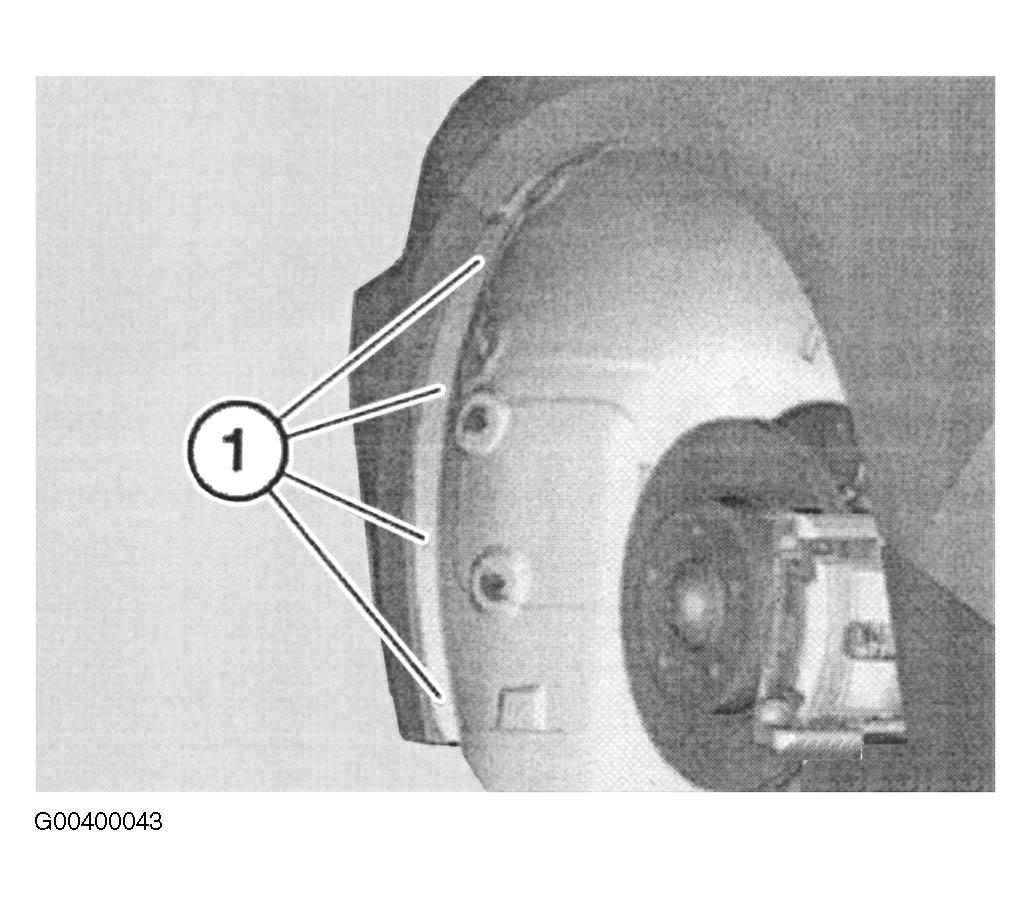

Release expansion rivets (1) on left/right.

Fig 1: Releasing Expansion Rivets On Left & Right

Courtesy of BMW OF NORTH AMERICA, INC.

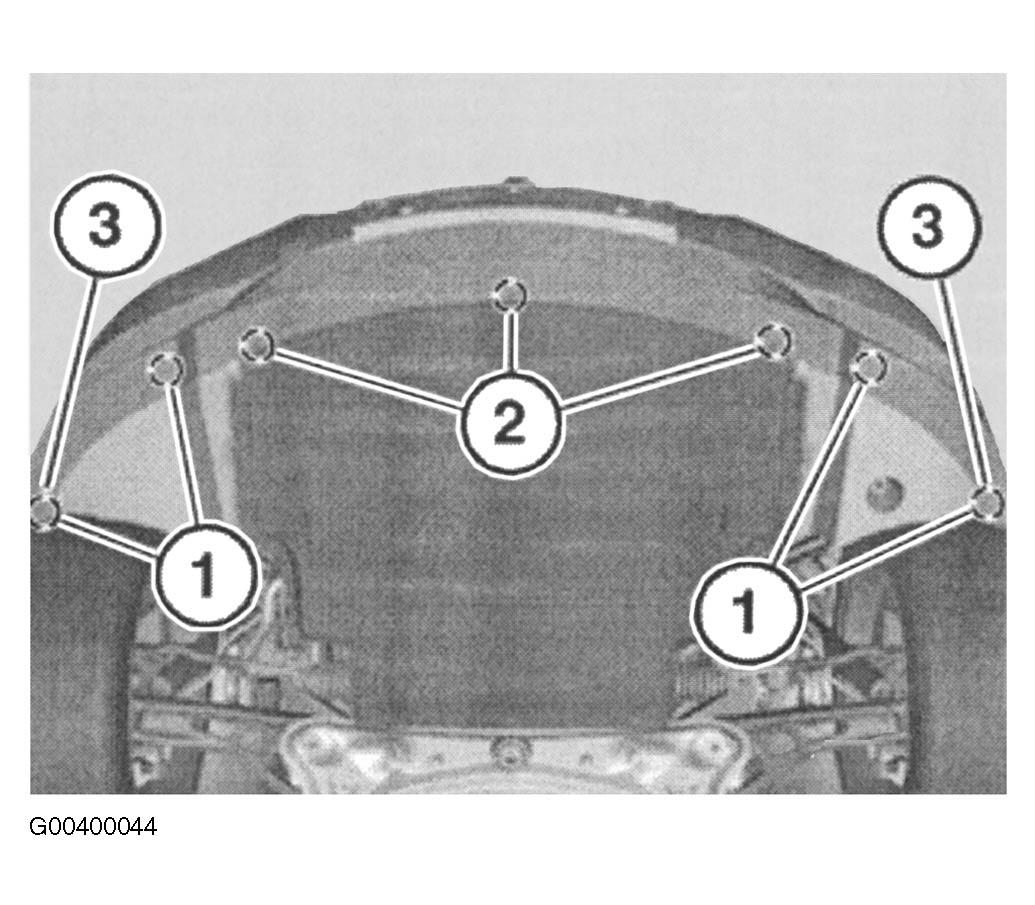

Release screws (1). On M Roadster, unfasten screws (2).

Installation: Bumper trim is secured through opening (3) on left/right.

Fig 2: Identifying Screws (1 & 2) & Securing Bumper Trim Through Opening (3)

Courtesy of BMW OF NORTH AMERICA, INC.

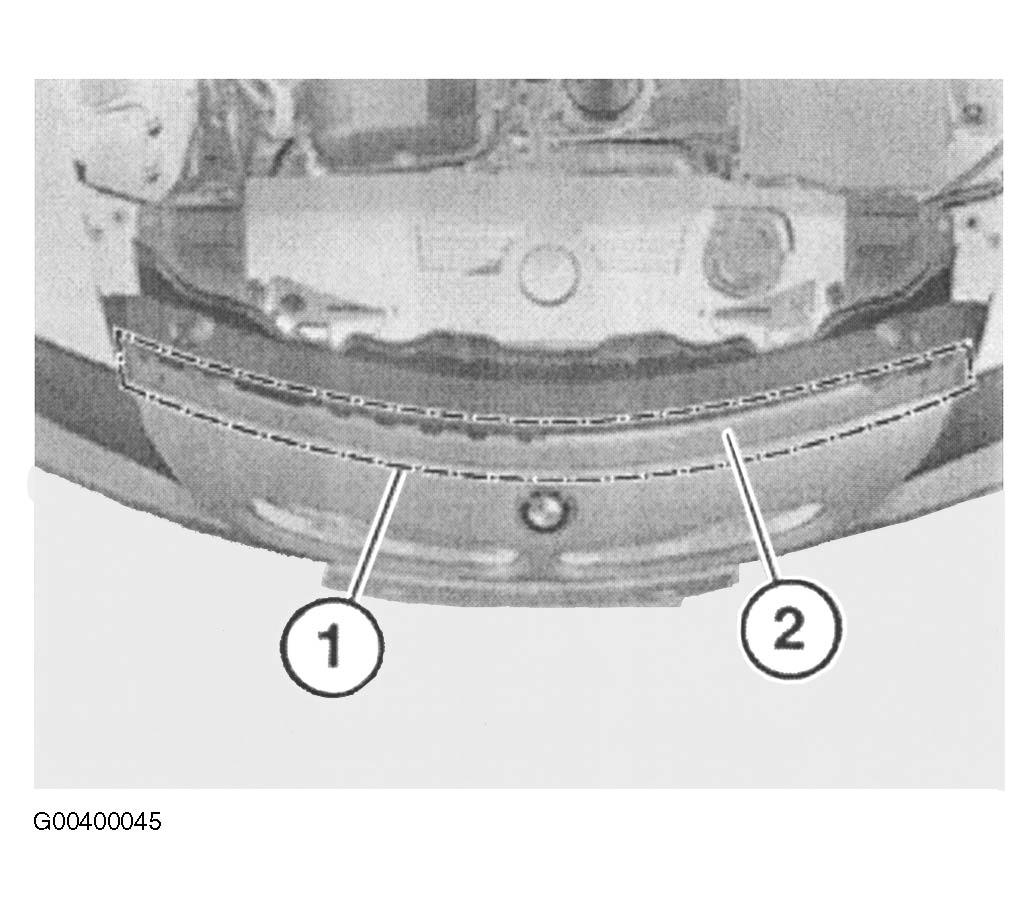

Release screws in area (1) and remove strip (2).

Fig 3: Releasing Screws (1) & Removing Strip (2)

Courtesy of BMW OF NORTH AMERICA, INC.

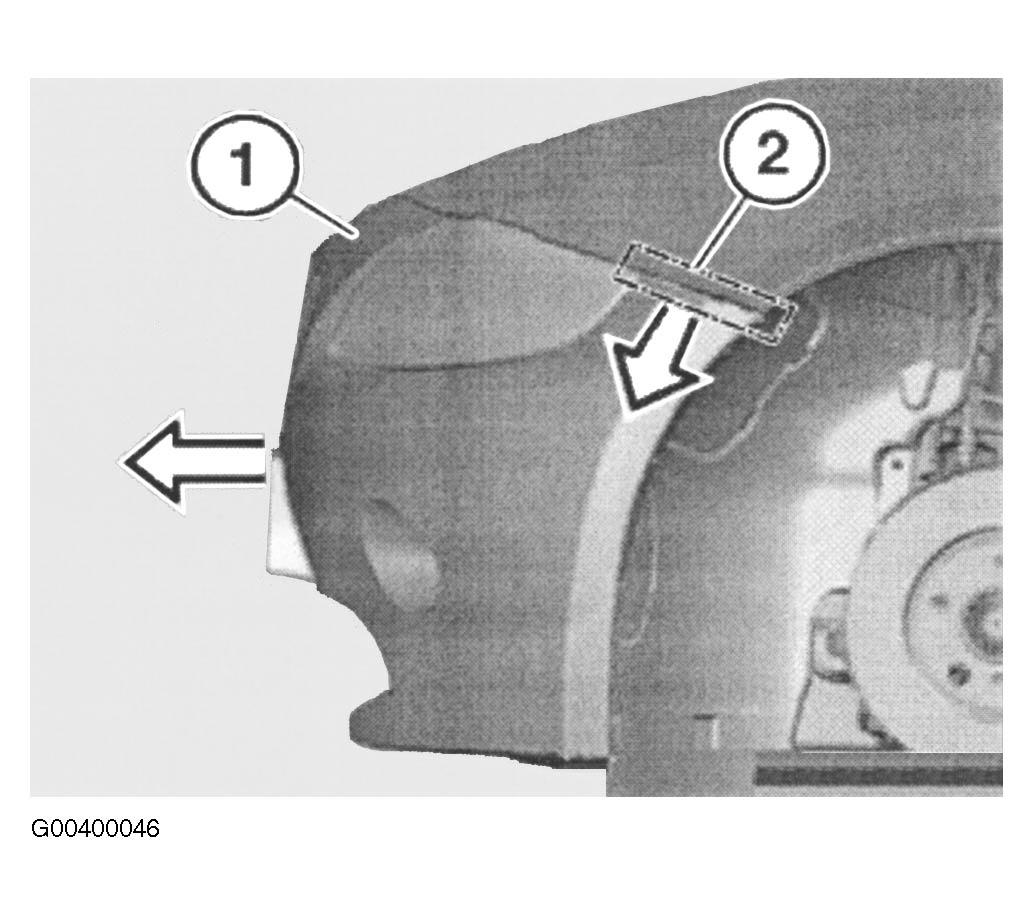

Unclip bumper trim (1) in area (2) on left/right in direction of arrow with special tool 00 9 317.

Version with fog lamps: Pull bumper trim (1) forwards slightly and disconnect plug connections on fog lamp on left/right. Remove bumper trim (1) straight forwards with a 2nd person helping.

Fig 4: Pulling Bumper Trim (1) Forward

Courtesy of BMW OF NORTH AMERICA, INC.
