52 25 041 Removing And Installing/Replacing Backrest Frame On Left Or Right Rear Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
- Remove rear panel on rear seat backrest. Refer to 52 25 ... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .
- Remove rear head restraint mounting. Refer to 52 25 380 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT MOUNT .
- Remove four-bar lever on rear seat backrest. Refer to 52 25 018 REMOVING AND INSTALLING/REPLACING FOUR-BAR LEVER ON LEFT OR RIGHT REAR SEAT BACKREST .
- Remove backrest cover for rear seat. Refer to 52 24 410 REPLACING BACKREST COVER (NORMAL) FOR LEFT OR RIGHT REAR SEAT .

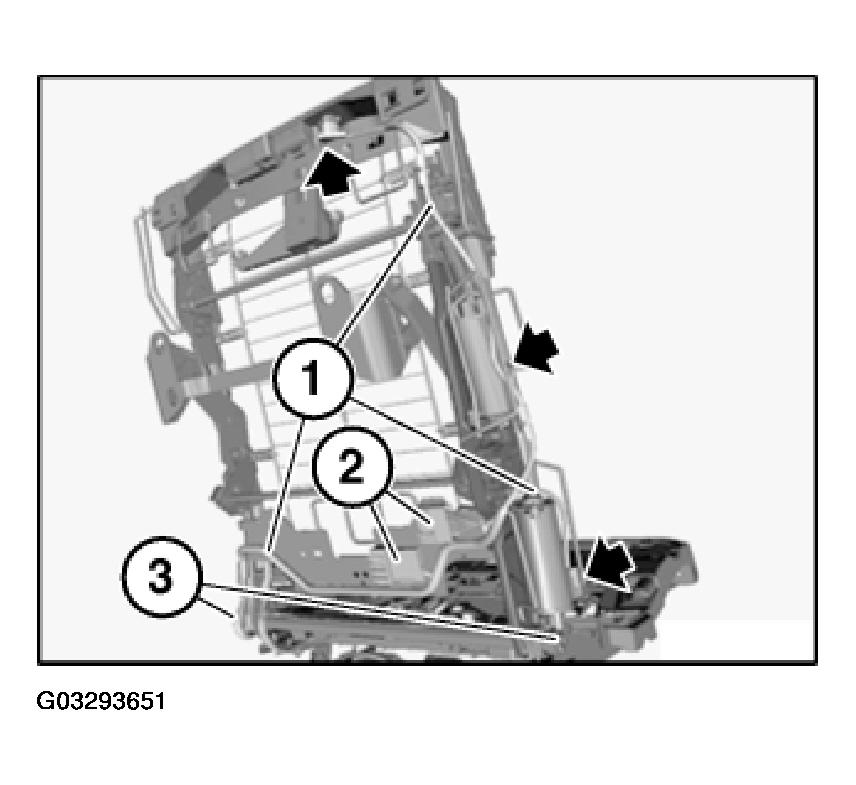

Disconnect plug connections at marked points.
Unclip plug (2).
Release all cable ties and remove wiring harness (1).
Release screws (3) and remove backrest frame. Refer to 52 14 030 REMOVING AND INSTALLING/REPLACING BACKREST FRAME ON LEFT OR RIGHT FRONT SEAT .
Installation:
Tightening torque, refer to 52 25 3AZ in SEATS - TIGHTENING TORQUES .
NOTE:
The new backrest frame part contains all the drives.
